Unit · AXIAL-PISTON MOTOR
AL A10F E 11 /52W-VKH16N000R902465564
Axial piston motor Bosch Rexroth series A10FM, type code ALA10FE11/52W-VKH16N000, material number R902465564. Nominal size: NG 11. Axial piston unit: swashplate design, constant, nominal pressure 280 bar (4100 psi), maximum (A10F). Operating mode: motor, plug-in design, open and closed circuits (E). Direction of rotation: viewed on drive shaft Alternating (W). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: 8-hole special flange (H). Working port: threaded port according A and B laterally, Threaded port, to DIN 3852-1 same side, metric (16N00). Valves: without valve (0).
- Number
- R902465564
- Type code
- AL A10F E 11 /52W-VKH16N000
- Group
- A10FE 11
- Edition
- 05/2020

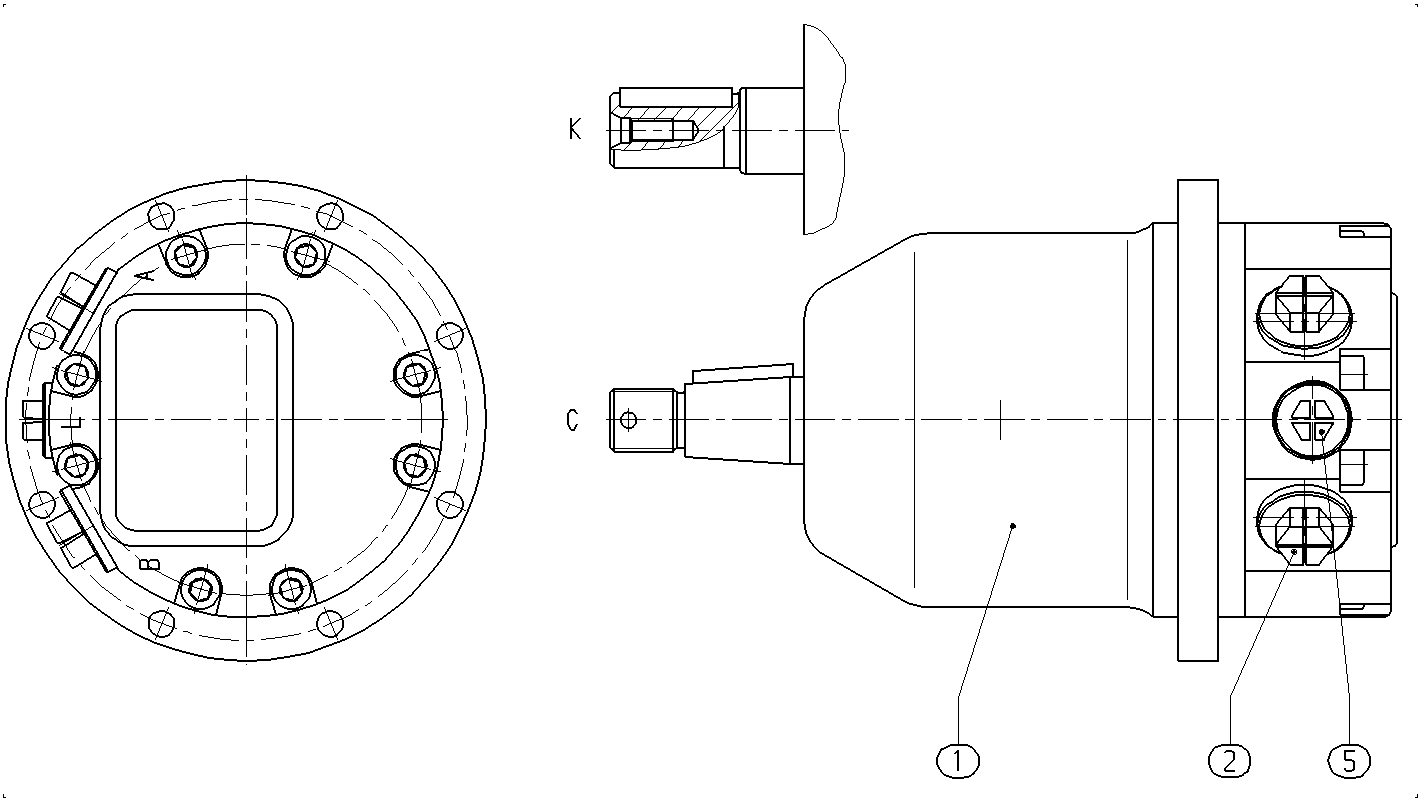

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902465565 | AXIAL-PISTON MOTOR Assembly parts list →L | 1 | ||
| R902602010 | SEAL SCREW | 2 | ||
| R902602008 | SEAL SCREW | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, constant, nominal pressure 280 bar (4100 psi), maximum | A10F |
| Operating mode | Motor, plug-in design, open and closed circuits | E |
| Size (NG) | 11 | 11 |
| Series | Series 5, index 2 | 52 |
| Direction of rotation | Viewed on drive shaft Alternating | W |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Mounting flange | 8-hole special flange | H |
| Working port | Threaded port according A and B laterally, Threaded port, to DIN 3852-1 same side, metric | 16N00 |
| Valves | Without valve | 0 |
