Unit · AXIAL-PISTON PUMP

A A4VSO 250 HM2 /30R-PPB13K31 -SO 19R902465609

Axial piston pump Bosch Rexroth series A4VSO, type code AA4VSO250HM2/30R-PPB13K31-SO19, material number R902465609. Nominal size: NG 250. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A4VS). Operating mode: pump, open circuit (O). Control device Information on controller selection: hydraulic control, depending on quantity (HM2). Directions of rotation: viewed on drive shaft Clockwise (R). Drive shafts: parallel keyed shaft DIN 6885 (P). Mounting flange: based on ISO 3019-2 (metric) 4-hole (B). Through drive: 125-4 32x2x14x9g A4VS NG40 (31). Special version no. 19.

Number
R902465609
Type code
A A4VSO 250 HM2 /30R-PPB13K31 -SO 19
Group
A4VSO 250
Edition
05/2021

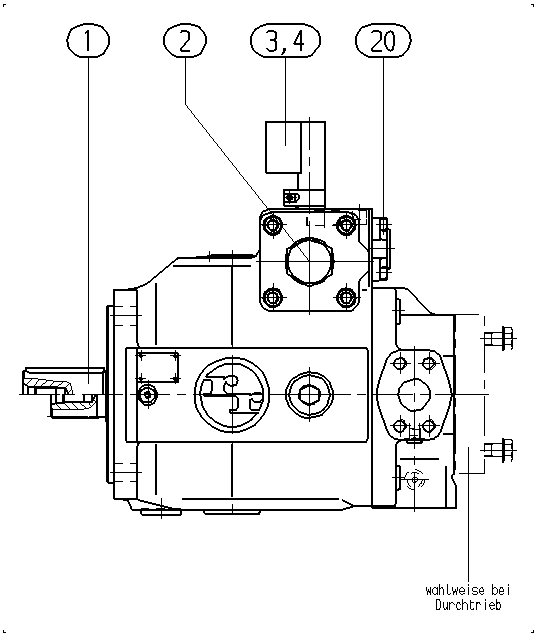

A A4VSO 250 HM2 /30R-PPB13K31 -SO 19 — Drawing
Pos.NumberNameQtyAdd to inquiry
R902465614BASE UNIT Assembly parts list →L1
R902404711ADJUSTING PIECE Assembly parts list →L1
R910901155INDUCTIVE POS.TRANSDUCER Assembly parts list →L1
R902537126PROTECTIVE TUBE Assembly parts list →L1
R910984191INTERMEDIATE PLATE Assembly parts list →L1
61R902805709SHIPPING PROTECTION1
62R902602206SEAL SCREW1
63R902564145SHIPPING PROTECTION1
71R902430609FLANGE COVER Assembly parts list →L1
81R902602010SEAL SCREW2

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, variable, nominal pressure 350 bar, maximum pressure 400 barA4VS
Operating modePump, open circuitO
Size (NG)250250
Control device Information on controller selectionHydraulic control, depending on quantityHM2
SeriesSeries 3, index 030
Directions of rotationViewed on drive shaft ClockwiseR
Drive shaftsParallel keyed shaft DIN 6885P
Mounting flangeBased on ISO 3019-2 (metric) 4-holeB
Through drive125-4 32x2x14x9g A4VS NG4031
