Unit · AXIAL-PISTON PUMP
A A10VSO 10 DFR1/52R-VSA07KB2 -S2494R902465676
Axial piston pump Bosch Rexroth series A10VSO, type code AA10VSO10DFR1/52R-VSA07KB2-S2494, material number R902465676. Nominal size: NG 10. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged, with flushing function (DFR1). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: splined shaft standard shaft ISO 3019-1 (S). Mounting flange: ISO 3019-2 2-hole (A). Through drive: for flange ISO 3019-2 Diameter, 80, 2-hole 3/4 in 11T 16/32DP (KB2). Special version no. 2494.
- Number
- R902465676
- Type code
- A A10VSO 10 DFR1/52R-VSA07KB2 -S2494
- Group
- A10VSO 10
- Edition
- 06/2020

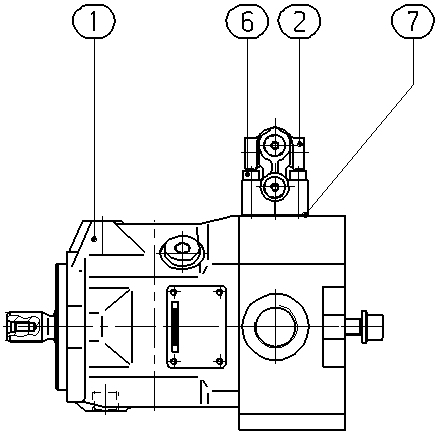

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902465675 | BASE UNIT Assembly parts list →L | 1 | ||
| R902463422 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910900443 | SOCKET HEAD CAP SCREW | 4 | ||
| R902434482 | SEAL | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 10 | 10 |
| Control device | with flow controller X-T plugged, with flushing function | DFR1 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Splined shaft standard shaft ISO 3019-1 | S |
| Mounting flange | ISO 3019-2 2-hole | A |
| Through drive | For flange ISO 3019-2 Diameter, 80, 2-hole 3/4 in 11T 16/32DP | KB2 |
