Unit · AXIAL-PISTON PUMP

AP A10V O 45LA9DS/53L-VWC12K01 -SO928R902465681

Axial piston pump Bosch Rexroth series A10VO, type code APA10VO45LA9DS/53L-VWC12K01-SO928, material number R902465681. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (A10V). Operating mode: pump, open circuit (O). Control devices: pressure cut-off via 240 bar, separate flow control hydraulic beginning of control.D (LA9DS). Directions of rotation: viewed on drive shaft counter-clockwise (L). Seal: FKM (fluorocarbon rubber) (V). Drive shaft: same as shaft "U", but for higher torque, limited suitability for through drive (W). Mounting flange: based on SAE B; 2-hole ISO 3019-1 (SAE) (C). Working port: at bottom, on opposite side, metric fastening thread (12). Through drive: 82-2 (A) 5/8 in 9T 16/32DP (K01). Special version no. 928.

Number
R902465681
Type code
AP A10V O 45LA9DS/53L-VWC12K01 -SO928
Group
A10VO 45
Edition
06/2020

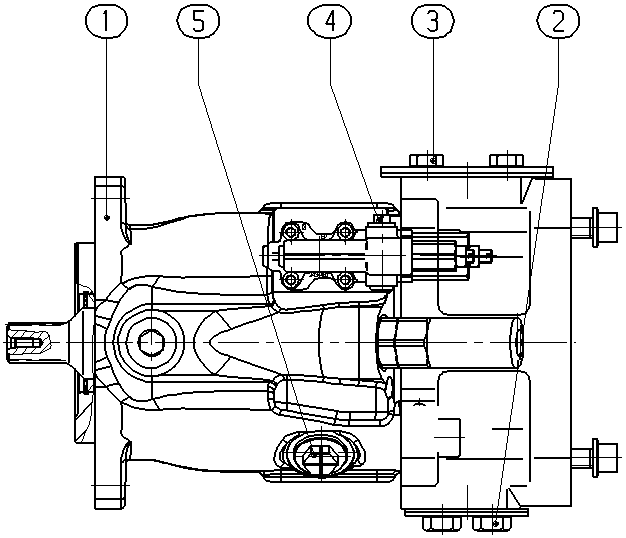

AP A10V O 45LA9DS/53L-VWC12K01 -SO928 — Drawing
Pos.NumberNameQtyAdd to inquiry
R902465682AXIAL-PISTON PUMP Assembly parts list →L1
R902400578FLANGE COVER1
R902400586FLANGE COVER1
R902602014SEAL SCREW1
R902603190SEAL SCREW1

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 barA10V
Operating modePump, open circuitO
Sizes (NG)4545
Control devicespressure cut-off via 240 bar, separate flow control hydraulic beginning of control.DLA9DS
Directions of rotationViewed on drive shaft counter-clockwiseL
SealFKM (fluorocarbon rubber)V
Drive shaftsame as shaft "U", but for higher torque, limited suitability for through driveW
Mounting flangeBased on SAE B; 2-hole ISO 3019-1 (SAE)C
Working portat bottom, on opposite side, metric fastening thread12
Through drive82-2 (A) 5/8 in 9T 16/32DPK01

Other versions 1
