Unit · AXIAL-PISTON PUMP
A A10VSO140 DRG /31L-VSB12KC5R902465908
Axial piston pump Bosch Rexroth series A10VSO, type code AA10VSO140DRG/31L-VSB12KC5, material number R902465908. Nominal size: NG 140. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Control device: with pressure cut-off hydraulic remote controlled (DRG). Direction of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: splined shaft standard shaft ISO 3019-1 (S). Working port: SAE flange ports according to ISO 6162, metric fastening thread laterally opposite (12).
- Number
- R902465908
- Type code
- A A10VSO140 DRG /31L-VSB12KC5
- Group
- A10VSO 140
- Edition
- 06/2020

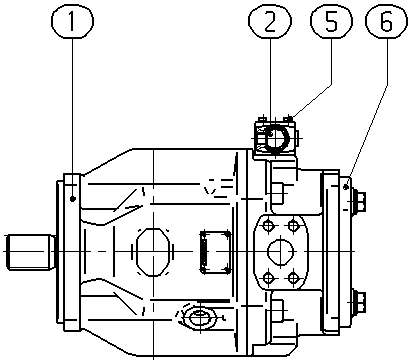

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902465959 | BASE UNIT Assembly parts list →L | 1 | ||
| R910943450 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910785105 | SOCKET HEAD CAP SCREW | 4 | ||
| R902469013 | SEALING COVER Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 140 | 140 |
| Control device | with pressure cut-off hydraulic remote controlled | DRG |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Splined shaft standard shaft ISO 3019-1 | S |
| Working port | SAE flange ports according to ISO 6162, metric fastening thread laterally opposite | 12 |
