Unit · AXIAL-PISTON PUMP
AL A10V O 45 DFR1/31L-VSC11N00 -SO190R902466014
Axial piston pump Bosch Rexroth series A10VO, type code ALA10VO45DFR1/31L-VSC11N00-SO190, material number R902466014. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged, with flushing function (DFR1). Direction of rotation: viewed on drive shaft Counter-clockwise (L). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections Fastening thread according to ISO 6162, metric; rear working ports metric Not for through drive (11). Through drive: without through drive (N00). Special version no. 190.
- Number
- R902466014
- Type code
- AL A10V O 45 DFR1/31L-VSC11N00 -SO190
- Group
- A10VO 45
- Edition
- 06/2020

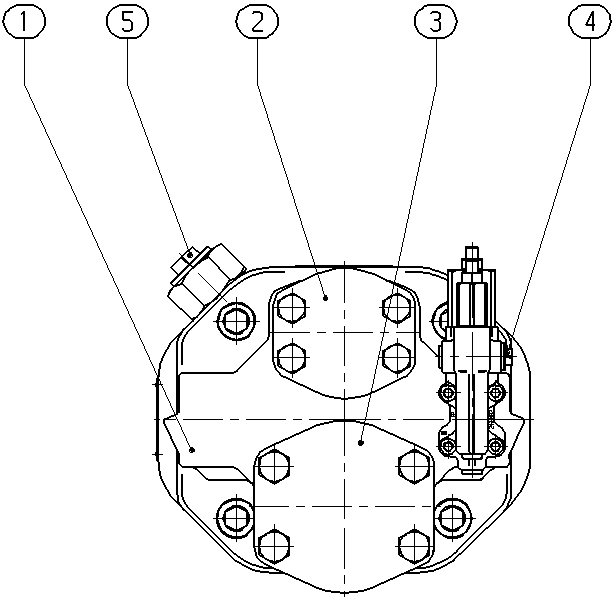

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902466079 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902400578 | FLANGE COVER | 1 | ||
| R902400586 | FLANGE COVER | 1 | ||
| R902602014 | SEAL SCREW | 1 | ||
| R902602011 | SEAL SCREW | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 45 | 45 |
| Control device | With flow controller X-T plugged, with flushing function | DFR1 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft Counter-clockwise | L |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange connections Fastening thread according to ISO 6162, metric; rear working ports metric Not for through drive | 11 |
| Through drive | Without through drive | N00 |
Other versions 11
- R902466079 A A10V O 45 DFR1/31L-VSC11N00 -SO190
- R902467370 A A10V O 45 DFR1/31L-VSC11N00 -SO413
- R902444212 AA10VO45DFR1/31L-VSC11N00-S1974
- R902481014 AL A10V O 45 DFR1/31L-VSC11N00
- R902521411 AL A10V O 45 DFR1/31L-VSC11N00
- R902521417 AL A10V O 45 DFR1/31L-VSC11N00
- R902466051 AL A10V O 45 DFR1/31L-VSC11N00 -SO190
- R902467369 AL A10V O 45 DFR1/31L-VSC11N00 -SO413
- R902444258 ALA10VO45DFR1/31L-VSC11N00-S1974
- R902520550 AP A10V O 45 DFR1/31L-VSC11N00
- R902469178 AP A10V O 45 DFR1/31L-VSC11N00 -S2582
