Unit · AXIAL-PISTON PUMP
AP A10V O100 DFR1/31L-VSC11N00 -S2291R902466024
Axial piston pump Bosch Rexroth series A10VO, type code APA10VO100DFR1/31L-VSC11N00-S2291, material number R902466024. Nominal size: NG 100. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged, with flushing function (DFR1). Direction of rotation: viewed on drive shaft Counter-clockwise (L). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections Fastening thread according to ISO 6162, metric; rear working ports metric Not for through drive (11). Through drive: without through drive (N00). Special version no. 2291.
- Number
- R902466024
- Type code
- AP A10V O100 DFR1/31L-VSC11N00 -S2291
- Group
- A10VO 100
- Edition
- 11/2019

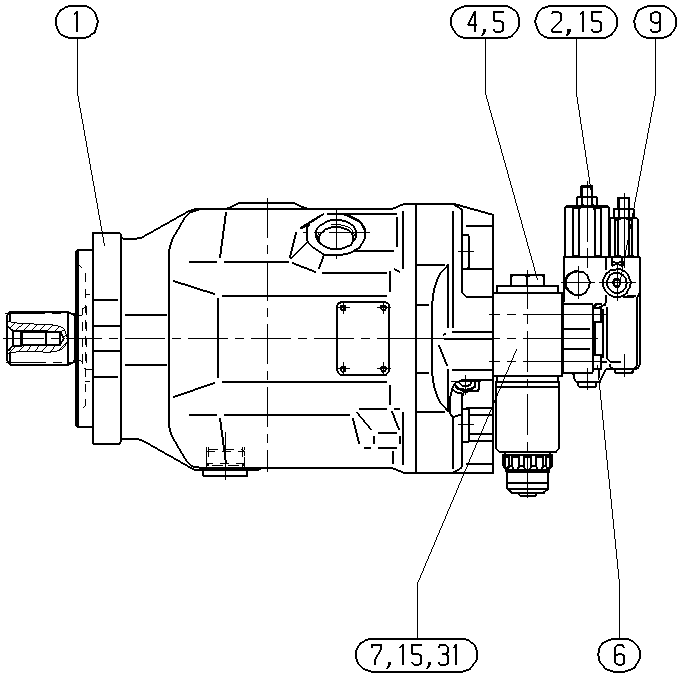

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902456069 | BASE UNIT Assembly parts list →L | 1 | ||
| R902465638 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902650786 | DIRECTIONAL SPOOL VALVE | 1 | ||
| R910785105 | SOCKET HEAD CAP SCREW | 4 | ||
| R910359491 | SOCKET HEAD CAP SCREW | 4 | ||
| R902469141 | INTERMEDIATE PLATE | 1 | ||
| R910764647 | SCREW PLUG | 1 | ||
| R902434482 | SEAL | 2 | ||
| — | DOUBLE BREAK-OFF PLUG | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 100 | 100 |
| Control device | With flow controller X-T plugged, with flushing function | DFR1 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft Counter-clockwise | L |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange connections Fastening thread according to ISO 6162, metric; rear working ports metric Not for through drive | 11 |
| Through drive | Without through drive | N00 |
