Unit · AXIAL-PISTON PUMP

AL A10V O 45 DFLR/31R-VSC12N00 -S2564R902466385

Axial piston pump Bosch Rexroth series A10VO, type code ALA10VO45DFLR/31R-VSC12N00-S2564, material number R902466385. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: pressure, flow and power controller (DFLR). Direction of rotation: viewed on drive shaft Clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive (12). Through drive: without through drive (N00). Special version no. 2564.

Number
R902466385
Type code
AL A10V O 45 DFLR/31R-VSC12N00 -S2564
Group
A10VO 45
Edition
06/2020

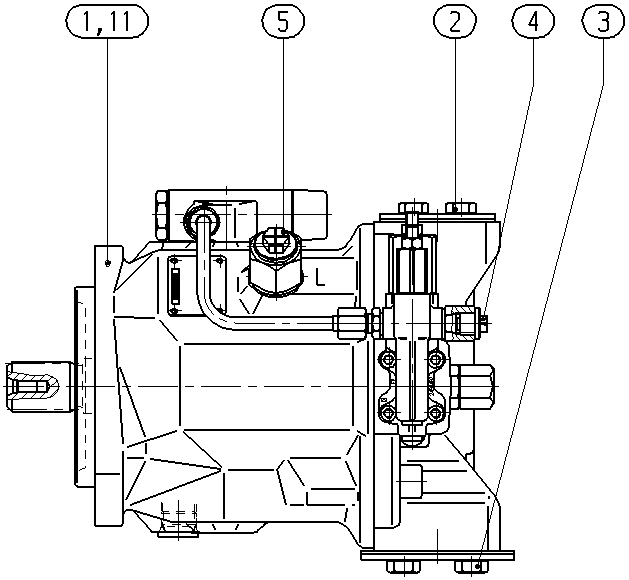

AL A10V O 45 DFLR/31R-VSC12N00 -S2564 — Drawing
Pos.NumberNameQtyAdd to inquiry
R902466386AXIAL-PISTON PUMP Assembly parts list →L1
R902400578FLANGE COVER1
R902400586FLANGE COVER1
R902602008SEAL SCREW1
R902602011SEAL SCREW1

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi)A10V
Operating modePump, open circuitO
Size (NG)4545
Control devicePressure, flow and power controllerDFLR
SeriesSeries 3, index 131
Direction of rotationViewed on drive shaft ClockwiseR
Sealing materialFKM (fluorocarbon rubber)V
Mounting flangeBased on ISO 3019-1 (SAE) 2-holeC
Working portSAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive12
Through driveWithout through driveN00

Other versions 54
