Unit · AXIAL-PISTON PUMP

A A10V O 28 DFR1/31R-VSC12K68 -SO420R902467061

Axial piston pump Bosch Rexroth series A10VO, type code AA10VO28DFR1/31R-VSC12K68-SO420, material number R902467061. Nominal size: NG 28. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged, with flushing function (DFR1). Direction of rotation: viewed on drive shaft Clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive (12). Through drive: 101-2 (B) 7/8 in 13T 16/32DP (K68). Special version no. 420.

Number
R902467061
Type code
A A10V O 28 DFR1/31R-VSC12K68 -SO420
Group
A10VO 28
Edition
06/2020

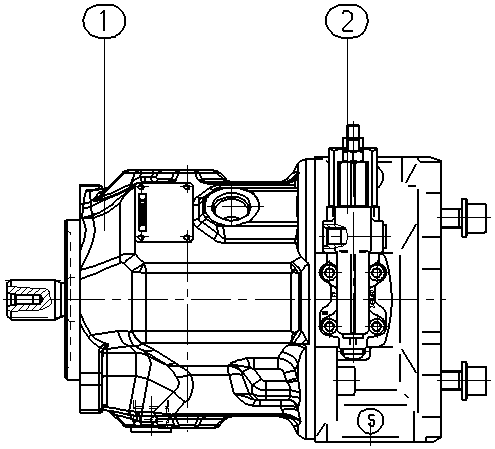

A A10V O 28 DFR1/31R-VSC12K68 -SO420 — Drawing
Pos.NumberNameQtyAdd to inquiry
R902444465BASE UNIT Assembly parts list →L1
R902450439CONTROL VALVE Assembly parts list →L1
70R902421944SHIPPING PROTECTION1
71R902421946SHIPPING PROTECTION1
72R902602016SEAL SCREW1
73R902602014SEAL SCREW1
74R902602977FLANGE COVER1
75R909830326NAMEPLATE1

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi)A10V
Operating modePump, open circuitO
Size (NG)2828
Control deviceWith flow controller X-T plugged, with flushing functionDFR1
SeriesSeries 3, index 131
Direction of rotationViewed on drive shaft ClockwiseR
Sealing materialFKM (fluorocarbon rubber)V
Mounting flangeBased on ISO 3019-1 (SAE) 2-holeC
Working portSAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive12
Through drive101-2 (B) 7/8 in 13T 16/32DPK68
