Unit · AXIAL-PISTON PUMP

A A10VSO 28 DFLR/31R-VPA12N00 -SO 52R902467374

Axial piston pump Bosch Rexroth series A10VSO, type code AA10VSO28DFLR/31R-VPA12N00-SO52, material number R902467374. Nominal size: NG 28. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Control device: pressure, flow and power controller (DFLR). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: parallel keyed shaft DIN 6885 permissible through-drive torque (P). Mounting flange: ISO 3019-2 2-hole (A). Working port: SAE flange ports according to ISO 6162, metric fastening thread laterally opposite (12). Through drive: without through drive (N00). Special version no. 52.

Number
R902467374
Type code
A A10VSO 28 DFLR/31R-VPA12N00 -SO 52
Group
A10VSO 28
Edition
06/2020

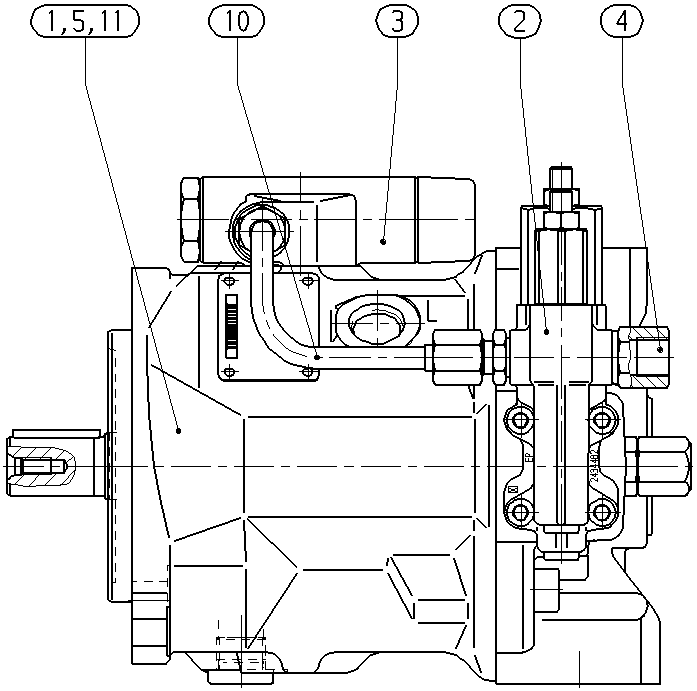

A A10VSO 28 DFLR/31R-VPA12N00 -SO 52 — Drawing
Pos.NumberNameQtyAdd to inquiry
R910915135BASE UNIT Assembly parts list →L1
R902450439CONTROL VALVE Assembly parts list →L1
R902533936CONTROL VALVE Assembly parts list →L1
R910932943ADAPTER Assembly parts list →L1
R910969354SIDE MARKER RING1
R910963863PIPING Assembly parts list →L1
R910908538POWER DIAGRAM1

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, variable, nominal pressure 280 bar, maximum pressure 350 barA10VS
Operating modePump, open circuitO
Size (NG)2828
Control devicePressure, flow and power controllerDFLR
SeriesSeries 3, index 131
Direction of rotationViewed on drive shaft clockwiseR
Sealing materialFKM (fluorocarbon rubber)V
Drive shaftParallel keyed shaft DIN 6885 permissible through-drive torqueP
Mounting flangeISO 3019-2 2-holeA
Working portSAE flange ports according to ISO 6162, metric fastening thread laterally opposite12
Through driveWithout through driveN00
