Unit · POMPA OSIOWO-TŁOKOWA
AL A10VSO 45 DFR1/31L-VPA12N00R902467770
Axial piston pump Bosch Rexroth series A10VSO, type code ALA10VSO45DFR1/31L-VPA12N00, material number R902467770. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged, with flushing function (DFR1). Direction of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: parallel keyed shaft DIN 6885 permissible through-drive torque (P). Mounting flange: ISO 3019-2 2-hole (A). Working port: SAE flange ports according to ISO 6162, metric fastening thread laterally opposite (12). Through drive: without through drive (N00).
- Number
- R902467770
- Type code
- AL A10VSO 45 DFR1/31L-VPA12N00
- Group
- A10VSO 45
- Edition
- 06/2020

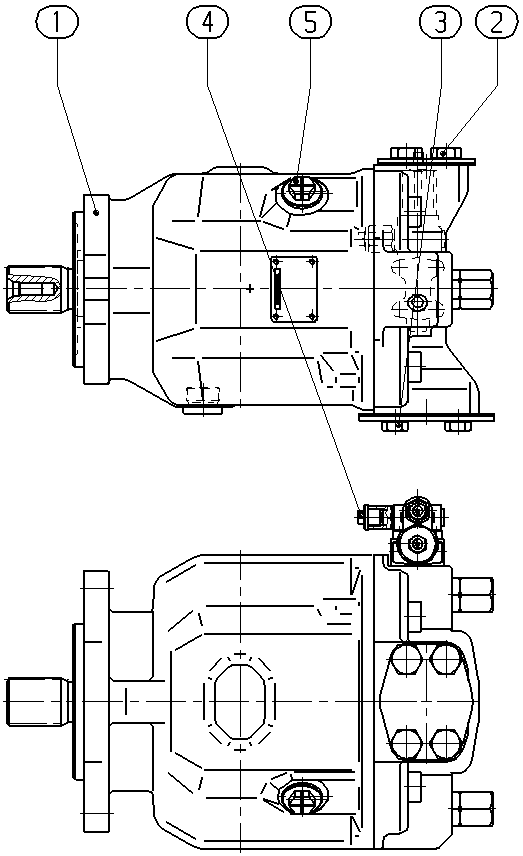

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910948253 | POMPA OSIOWO-TŁOKOWA Assembly parts list →L | 1 | ||
| R902400578 | POKRYWA KOŁNIERZA | 1 | ||
| R902400586 | POKRYWA KOŁNIERZA | 1 | ||
| R902602008 | ŚRUBA USZCZELNIAJĄCA | 1 | ||
| R902602011 | ŚRUBA USZCZELNIAJĄCA | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 45 | 45 |
| Control device | with flow controller X-T plugged, with flushing function | DFR1 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Parallel keyed shaft DIN 6885 permissible through-drive torque | P |
| Mounting flange | ISO 3019-2 2-hole | A |
| Working port | SAE flange ports according to ISO 6162, metric fastening thread laterally opposite | 12 |
| Through drive | Without through drive | N00 |
