Unit · AXIAL-PISTON PUMP
AL A10V O 45LA9DS/53R-VUC64N00 -SO413R902467779
Axial piston pump Bosch Rexroth series A10VO, type code ALA10VO45LA9DS/53R-VUC64N00-SO413, material number R902467779. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (A10V). Operating mode: pump, open circuit (O). Control devices: pressure cut-off via 240 bar, separate flow control hydraulic beginning of control.D (LA9DS). Directions of rotation: viewed on drive shaft clockwise (R). Seal: FKM (fluorocarbon rubber) (V). Drive shaft: reduced diameter, limited suitability for through drive (U). Mounting flange: based on SAE B; 2-hole ISO 3019-1 (SAE) (C). Through drive: without through drive (N00). Special version no. 413.
- Number
- R902467779
- Type code
- AL A10V O 45LA9DS/53R-VUC64N00 -SO413
- Group
- A10VO 45
- Edition
- 06/2020

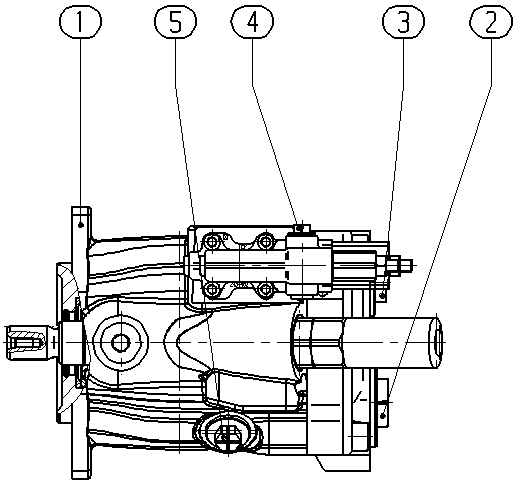

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902467780 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902603194 | SEAL SCREW | 1 | ||
| R902603192 | SEAL SCREW | 1 | ||
| R902602014 | SEAL SCREW | 1 | ||
| R902603190 | SEAL SCREW | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar | A10V |
| Operating mode | Pump, open circuit | O |
| Sizes (NG) | 45 | 45 |
| Control devices | pressure cut-off via 240 bar, separate flow control hydraulic beginning of control.D | LA9DS |
| Directions of rotation | Viewed on drive shaft clockwise | R |
| Seal | FKM (fluorocarbon rubber) | V |
| Drive shaft | reduced diameter, limited suitability for through drive | U |
| Mounting flange | Based on SAE B; 2-hole ISO 3019-1 (SAE) | C |
| Through drive | Without through drive | N00 |
