Unit · AXIAL-PISTON PUMP
ALA10VSO10DR/52L-VPX46N00-S2913R902468089
Axial piston pump Bosch Rexroth series A10VSO, type code ALA10VSO10DR/52L-VPX46N00-S2913, material number R902468089. Nominal size: NG 10. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Control device: pressure controller hydraulic (DR). Direction of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: parallel keyed shaft DIN 6885 permissible through-drive torque (P). Through drive: without through drive (N00). Special version no. 2913.
- Number
- R902468089
- Type code
- ALA10VSO10DR/52L-VPX46N00-S2913
- Group
- A10VSO 10
- Edition
- 06/2020

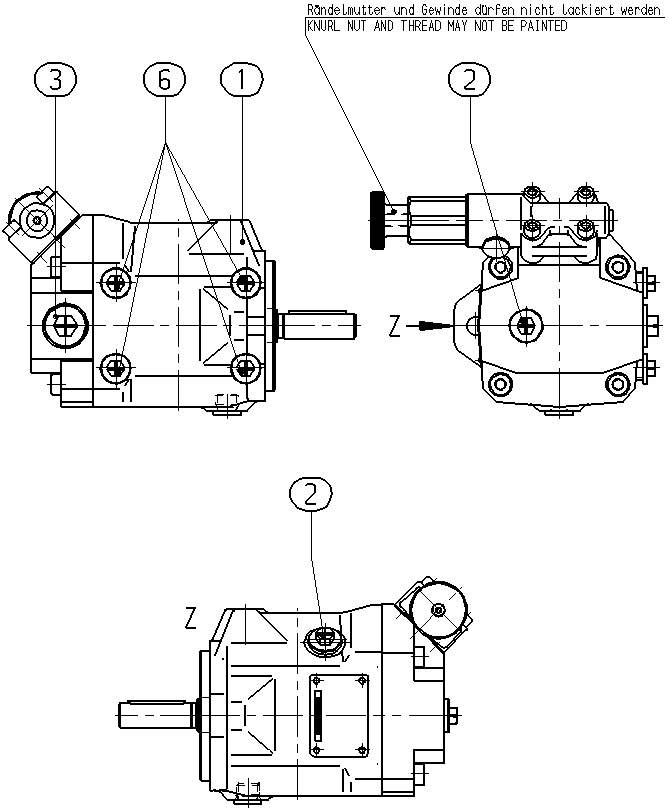

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902468092 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902602015 | SEAL SCREW | 2 | ||
| R902602016 | SEAL SCREW | 1 | ||
| R902602008 | SEAL SCREW | 4 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 10 | 10 |
| Control device | Pressure controller hydraulic | DR |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Parallel keyed shaft DIN 6885 permissible through-drive torque | P |
| Through drive | Without through drive | N00 |
