Unit · AXIAL-PISTON MOTOR
A A10V E 45 HZ6 /52W1-VRF66N007 -S2569R902468312
Axial piston motor Bosch Rexroth series A10VM, type code AA10VE45HZ6/52W1-VRF66N007-S2569, material number R902468312. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10V). Operating mode: motor, plug-in design, open and closed circuits (E). Control devices: two-point control hydraulic orifice with (HZ6). Direction of rotation: viewed on drive shaft bi-directional (W). Minimum displacement: vg min [cm3] steplessly adjustable from/to (1). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: splined shaft similar to ISO 3019-1 for high torque (R). Mounting flange: special flange; 2 hole (F). Working port: threaded port according to A and B laterally, Threaded port, UN ISO 11926 same side (66N00). Valves: integrated flushing valve (only with working line ports 10N00, 60N00 and 16N00, 66N00) (7). Special version no. 2569.
- Number
- R902468312
- Type code
- A A10V E 45 HZ6 /52W1-VRF66N007 -S2569
- Group
- A10VE 45
- Edition
- 06/2020

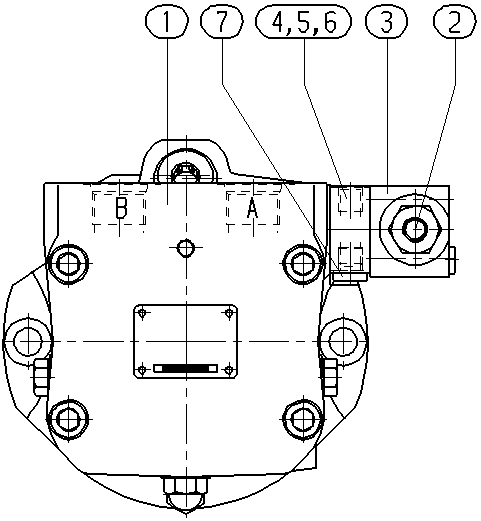

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902468297 | BASE UNIT Assembly parts list →L | 1 | ||
| R902410659 | DIRECTIONAL-CONTROL VALVE Assembly parts list →L | 1 | ||
| R902465852 | VALVE HOUSING Assembly parts list →L | 1 | ||
| R910960135 | INTERMEDIATE PLATE | 1 | ||
| R910514497 | O-RING | 3 | ||
| R910387053 | SOCKET HEAD CAP SCREW | 4 | ||
| R909156650 | SCREW PLUG | 1 | ||
| 70 | R902603191 | SEAL SCREW | 2 | |
| 72 | R902603190 | SEAL SCREW | 1 | |
| 73 | R902602014 | SEAL SCREW | 1 | |
| 75 | R909830326 | NAMEPLATE | 1 | |
| 76 | R902602007 | SEAL SCREW | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10V |
| Operating mode | Motor, plug-in design, open and closed circuits | E |
| Size (NG) | 45 | 45 |
| Control devices | Two-point control hydraulic orifice with | HZ6 |
| Series | Series 5, index 2 | 52 |
| Direction of rotation | Viewed on drive shaft bi-directional | W |
| Minimum displacement | Vg min [cm3] steplessly adjustable from/to | 1 |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Splined shaft similar to ISO 3019-1 for high torque | R |
| Mounting flange | Special flange; 2 hole | F |
| Working port | Threaded port according to A and B laterally, Threaded port, UN ISO 11926 same side | 66N00 |
| Valves | Integrated flushing valve (only with working line ports 10N00, 60N00 and 16N00, 66N00) | 7 |
