Unit · AXIAL-PISTON PUMP
A A10V O 45ED 72/52R-VCC11N00P -S1457R902468628
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO45ED72/52R-VCC11N00P-S1457, material number R902468628. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Control device: electric U = 24 V (ED72). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: tapered keyed shaft and UNF threaded bolt not for through-drive (C). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange ports fastening thread metric rear according to ISO 6162 metric not for through drive (11). Through drive: without through drive (N00). Connector for solenoids: DEUTSCH – molded connector, 2-pin – without suppressor diode (for electric controls) (P). Special version no. 1457.
- Number
- R902468628
- Type code
- A A10V O 45ED 72/52R-VCC11N00P -S1457
- Group
- A10VO 45
- Edition
- 06/2020

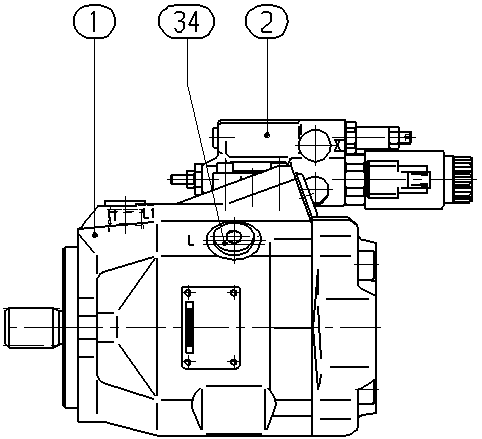

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902468616 | BASE UNIT Assembly parts list →L | 1 | ||
| R902533432 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910967343 | SCREW PLUG | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 45 | 45 |
| Control device | electric U = 24 V | ED72 |
| Series | Series 5, index 2 | 52 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Tapered keyed shaft and UNF threaded bolt not for through-drive | C |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange ports fastening thread metric rear according to ISO 6162 metric not for through drive | 11 |
| Through drive | Without through drive | N00 |
| Connector for solenoids | DEUTSCH – molded connector, 2-pin – without suppressor diode (for electric controls) | P |
Other versions 8
- R902563866 A A10V O 45ED 72/52R-VCC11N00P -S1457
- R902473592 AH A10V O 45ED 72/52R-VCC11N00P -S1457
- R902544752 AH A10V O 45ED 72/52R-VCC11N00P -S1457
- R902476910 AH A10V O 45ED 72/52R-VCC11N00P -S2110
- R902536958 AH A10V O 45ED 72/52R-VCC11N00P -S2764
- R902456670 AHA10VO45ED72/52R-VCC11N00P-S1392
- R902535498 AL A10V O 45ED 72/52R-VCC11N00P -S1457
- R902547921 AP A10V O 45ED 72/52R-VCC11N00P -S1457
