Unit · AXIAL-PISTON MOTOR
AL A10F E 11 /52R-VCC66N002R902468684
Axial piston motor Bosch Rexroth series A10FM, type code ALA10FE11/52R-VCC66N002, material number R902468684. Nominal size: NG 11. Axial piston unit: swashplate design, constant, nominal pressure 280 bar (4100 psi), maximum (A10F). Operating mode: motor, plug-in design, open and closed circuits (E). Direction of rotation: viewed on drive shaft Clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: tapered shaft with shaft key and threaded bolt (C). Mounting flange: based on ISO 3019-1 (SAE); 2 hole (C). Working port: threaded port according A and B laterally, Threaded port, to ISO 11926 same side, UN (66N00). Valves: anti cavitation valve, integrated (2).
- Number
- R902468684
- Type code
- AL A10F E 11 /52R-VCC66N002
- Group
- A10FE 11
- Edition
- 06/2020

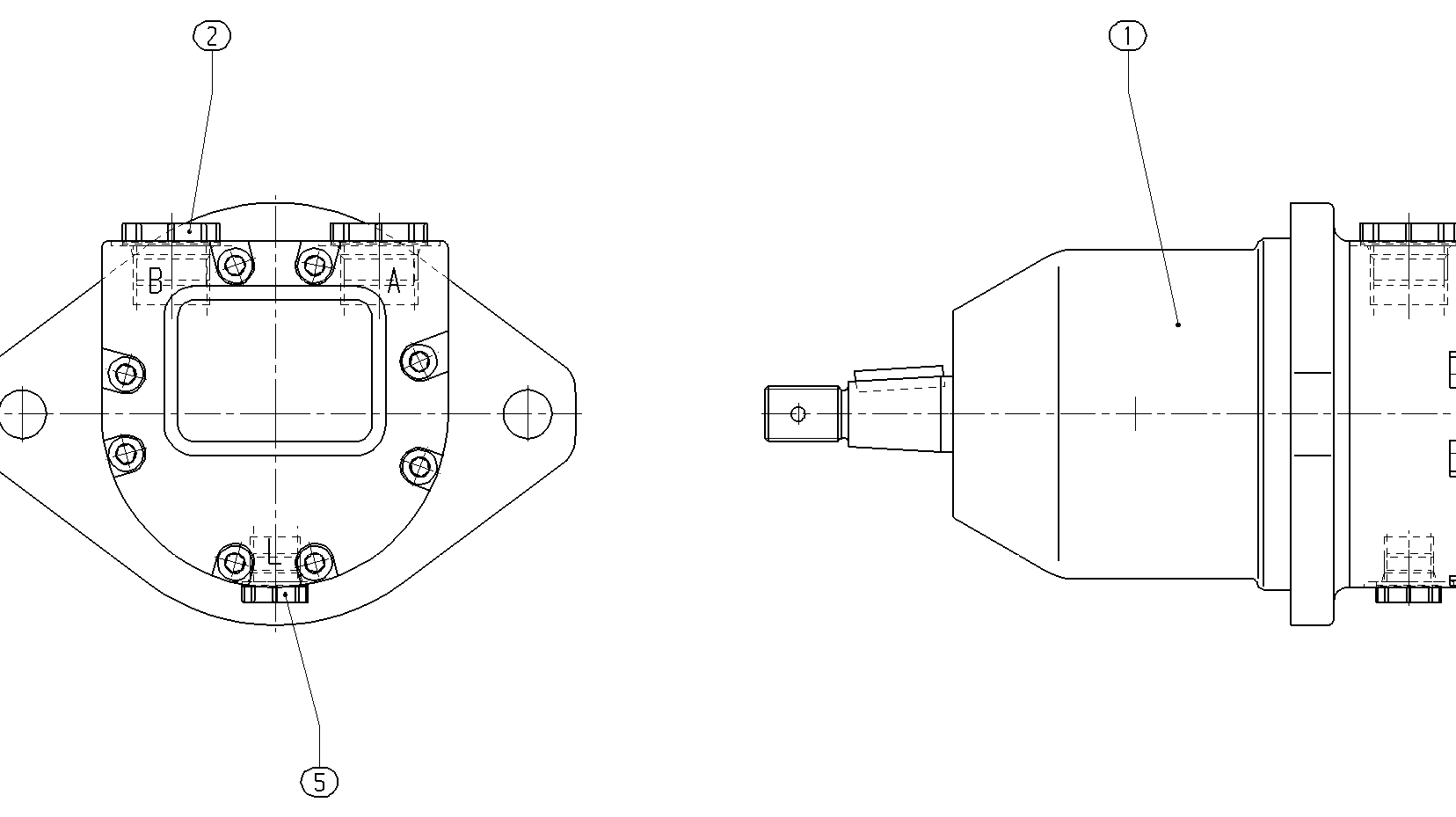

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902468970 | AXIAL-PISTON MOTOR Assembly parts list →L | 1 | ||
| R902603190 | SEAL SCREW | 2 | ||
| R902602015 | SEAL SCREW | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, constant, nominal pressure 280 bar (4100 psi), maximum | A10F |
| Operating mode | Motor, plug-in design, open and closed circuits | E |
| Size (NG) | 11 | 11 |
| Series | Series 5, index 2 | 52 |
| Direction of rotation | Viewed on drive shaft Clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Tapered shaft with shaft key and threaded bolt | C |
| Mounting flange | Based on ISO 3019-1 (SAE); 2 hole | C |
| Working port | Threaded port according A and B laterally, Threaded port, to ISO 11926 same side, UN | 66N00 |
| Valves | Anti cavitation valve, integrated | 2 |
