Unit · AXIAL-PISTON PUMP
A A10VSO 140 LA6S /32R-VSB22U99R902469087
Axial piston pump Bosch Rexroth series A10VSO, type code AA10VSO140LA6S/32R-VSB22U99, material number R902469087. Nominal size: NG 140. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: splined shaft standard shaft ISO 3019-1 (S). Mounting flange: ISO 3019-2; 4-hole (B). Port: SAE flange ports fastening thread, metric. top, bottom, opposite, with universal through drive without pulsation damping (22).
- Number
- R902469087
- Type code
- A A10VSO 140 LA6S /32R-VSB22U99
- Group
- A10VSO 140
- Edition
- 06/2020

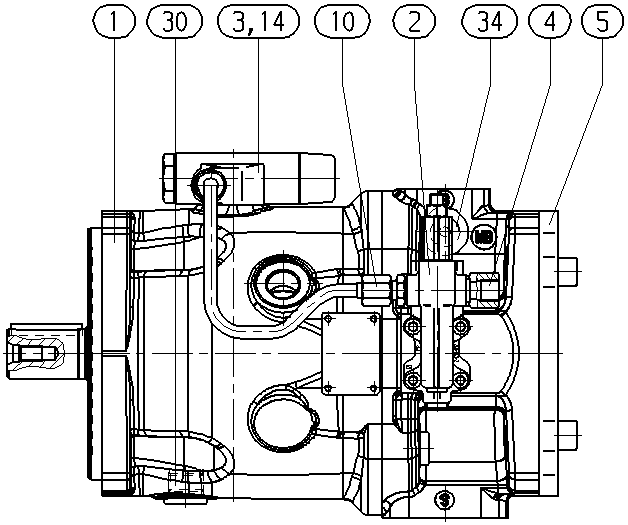

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902466247 | BASE UNIT Assembly parts list →L | 1 | ||
| R902533492 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902533219 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902409426 | ADAPTER Assembly parts list →L | 1 | ||
| R902444736 | COVER Assembly parts list →L | 1 | ||
| R902460054 | PIPING Assembly parts list →L | 1 | ||
| R910764647 | SCREW PLUG | 1 | ||
| R909156652 | SCREW PLUG | 1 | ||
| R913011609 | SCREW PLUG | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 140 | 140 |
| Series | Series 3, index 2 | 32 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Splined shaft standard shaft ISO 3019-1 | S |
| Mounting flange | ISO 3019-2; 4-hole | B |
| Port | SAE flange ports fastening thread, metric. top, bottom, opposite, with universal through drive without pulsation damping | 22 |
