Unit · BASE UNIT
G A10VSO110 OV /32R-VSD72UXXR902469094
Base unit Bosch Rexroth series A10VSO, type code GA10VSO110OV/32R-VSD72UXX, material number R902469094. Nominal size: NG 110. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: splined shaft standard shaft ISO 3019-1 (S).
- Number
- R902469094
- Type code
- G A10VSO110 OV /32R-VSD72UXX
- Group
- A10VSO 110
- Edition
- 06/2020

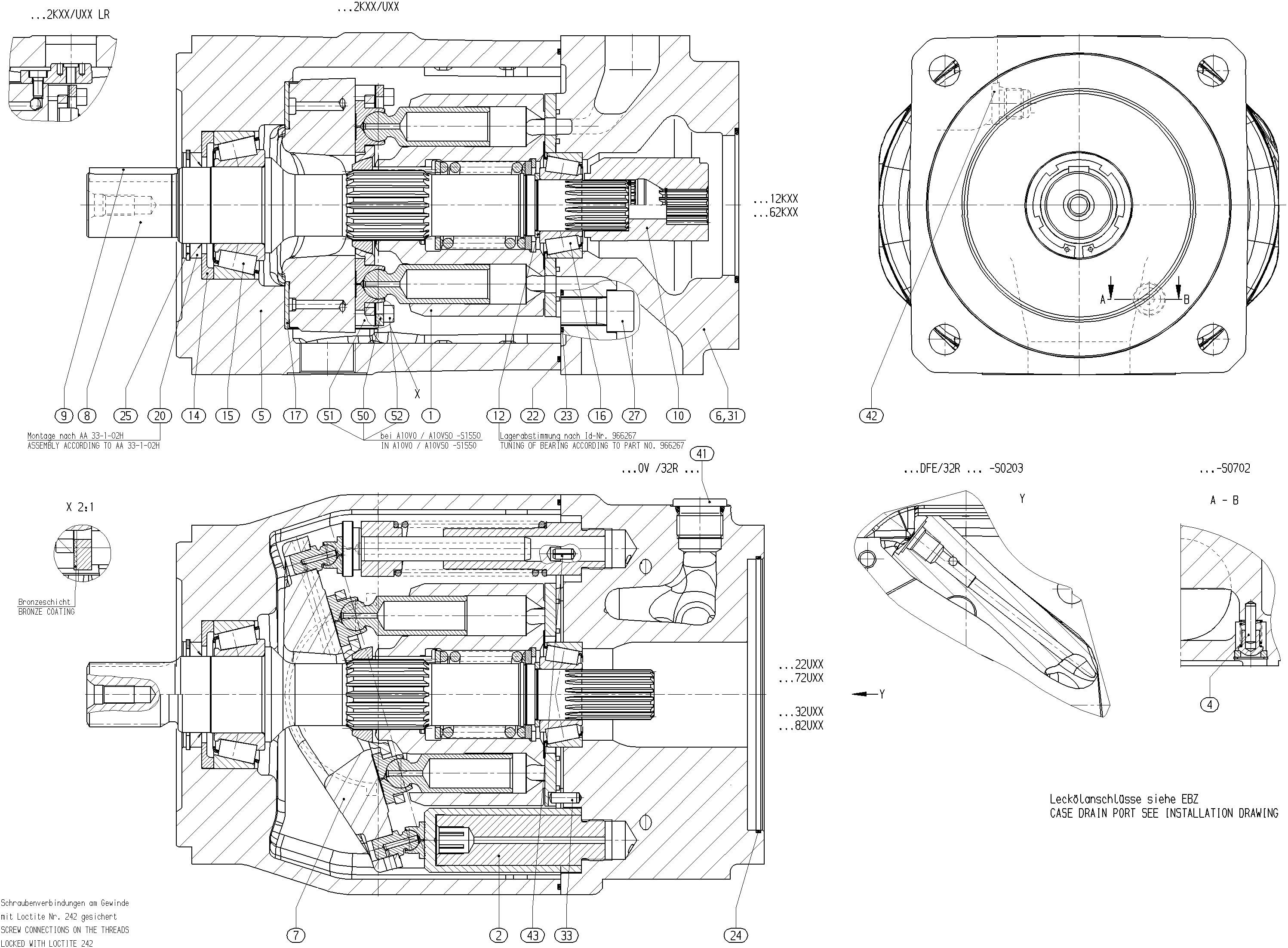

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902464782 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902469066 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R902421362 | PUMP HOUSING | 1 | ||
| R902464475 | CONNECTION PLATE | 1 | ||
| R902435871 | SWASH PLATE | 1 | ||
| R902463828 | DRIVE SHAFT | 1 | ||
| R910906878 | ADJUSTMENT SHIM | 1 | ||
| R902421452 | STOP RING | 1 | ||
| R910906908 | TAPERED-ROLLER BEARING | 1 | ||
| R910906909 | TAPERED-ROLLER BEARING | 1 | ||
| R910906881 | BEARING SHELL | 2 | ||
| R909831179 | ROTARY SHAFT LIP SEALD | 1 | ||
| R910912756 | O-RINGD | 1 | ||
| R913050578 | R-RINGD | 4 | ||
| R902650856 | O-RINGD | 1 | ||
| R909832149 | RETAINING RING | 1 | ||
| R910126411 | SOCKET HEAD CAP SCREW | 4 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R902533908 | STRAIGHT PIN | 1 | ||
| R900002645 | SLOTTED SPRING PIN | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 110 | 110 |
| Series | Series 3, index 2 | 32 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Splined shaft standard shaft ISO 3019-1 | S |
