Unit · AXIAL-PISTON PUMP
A A10VSO110 LA7D/32R-VSD72U68 ER902469622
Axial piston pump Bosch Rexroth series A10VSO, type code AA10VSO110LA7D/32R-VSD72U68E, material number R902469622. Nominal size: NG 110. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Control device: pressure cut-off from 91 to 160 bar (LA7D). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: splined shaft standard shaft ISO 3019-1 (S). Through drive: only for port plate 22 and 32, 101-2 (B) 7/8 in 13T 16/32DP (U68). Rotary group version: standard rotary group noise-optimized for n= 1500/1800 rpm (E).
- Number
- R902469622
- Type code
- A A10VSO110 LA7D/32R-VSD72U68 E
- Group
- A10VSO 110
- Edition
- 06/2020

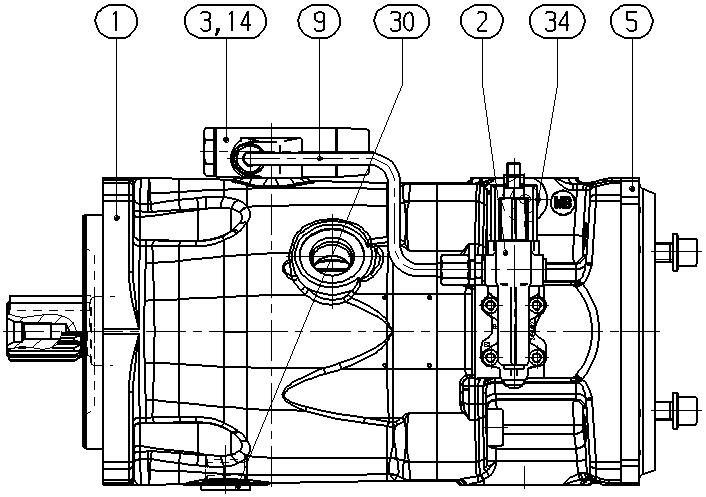

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902469628 | BASE UNIT Assembly parts list →L | 1 | ||
| R902451761 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902533220 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902447043 | ATTACHMENT KIT | 1 | ||
| 10 | R902436341 | PIPING Assembly parts list →L | 1 | |
| R910764647 | SCREW PLUG | 1 | ||
| R910967351 | SCREW PLUG | 1 | ||
| R913011609 | SCREW PLUG | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 110 | 110 |
| Control device | pressure cut-off from 91 to 160 bar | LA7D |
| Series | Series 3, index 2 | 32 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Splined shaft standard shaft ISO 3019-1 | S |
| Through drive | Only for port plate 22 and 32, 101-2 (B) 7/8 in 13T 16/32DP | U68 |
| Rotary group version | Standard rotary group noise-optimized for n= 1500/1800 rpm | E |
