Unit · POMPA OSIOWO-TŁOKOWA
AA10VSO100DR/32R-VPB32L60R902469690
Axial piston pump Bosch Rexroth series A10VSO, type code AA10VSO100DR/32R-VPB32L60, material number R902469690. Nominal size: NG 100. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Control device: pressure controller hydraulic (DR). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: parallel keyed shaft DIN 6885, limited suitability for through drive (P). Mounting flange: ISO 3019-2; 4-hole (B). Port: SAE flange ports fastening thread, metric. top, bottom, opposite, with universal through drive with pulse damping (32).
- Number
- R902469690
- Type code
- AA10VSO100DR/32R-VPB32L60
- Group
- A10VSO 100
- Edition
- 06/2020

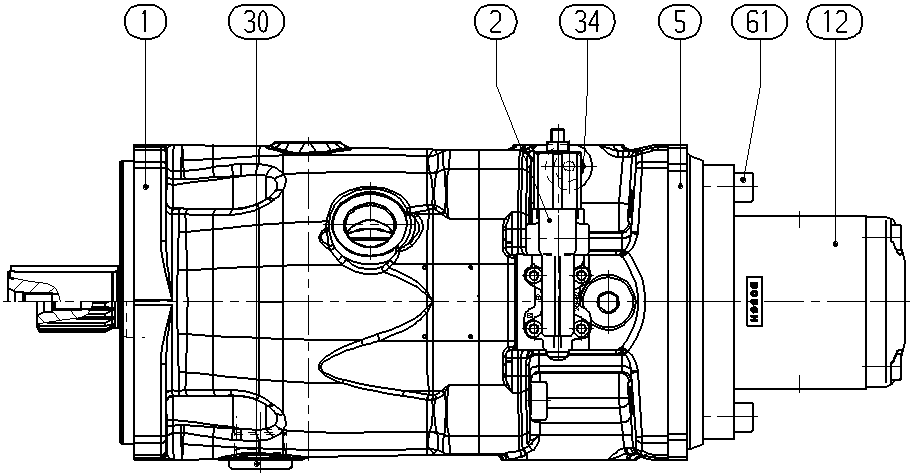

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902456922 | ZESPÓŁ PODSTAWY Assembly parts list →L | 1 | ||
| R902453112 | ZAWÓR REGULACYJNY Assembly parts list →L | 1 | ||
| R902447043 | ZESTAW PRZYŁĄCZENIOWY | 1 | ||
| 0510725181 | POMPA ZĘBATAL | 1 | ||
| R909156652 | KOREK GWINTOWANY | 1 | ||
| R913011609 | KOREK GWINTOWANY | 1 | ||
| R910121142 | ŚRUBA Z ŁBEM WALCOWYM | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 100 | 100 |
| Control device | Pressure controller hydraulic | DR |
| Series | Series 3, index 2 | 32 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Parallel keyed shaft DIN 6885, limited suitability for through drive | P |
| Mounting flange | ISO 3019-2; 4-hole | B |
| Port | SAE flange ports fastening thread, metric. top, bottom, opposite, with universal through drive with pulse damping | 32 |
