Unit · AXIAL-PISTON PUMP
P A4VSG 250 HS4E /30R-PPB10K340N-S1724R902469858
Axial piston pump Bosch Rexroth series A4VSG, type code PA4VSG250HS4E/30R-PPB10K340N-S1724, material number R902469858. Nominal size: NG 250. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure (A4VS). Operating mode: pump, closed circuit (G). Direction of rotation: viewed on drive shaft clockwise (R). Drive shaft: parallel keyed shaft DIN 6885 (P). Mounting flange: based on ISO 3019-2 metric 4-hole (B). Working port: SAE flange ports A and B, located on same side, metric fastening thread (10). Through-drive: 160, 4-hole 50×2×24×9g (K34). Valves: without valve block (0). Filtration: without filter (N). Special version no. 1724.
- Number
- R902469858
- Type code
- P A4VSG 250 HS4E /30R-PPB10K340N-S1724
- Group
- A4VSG 250
- Edition
- 07/2020

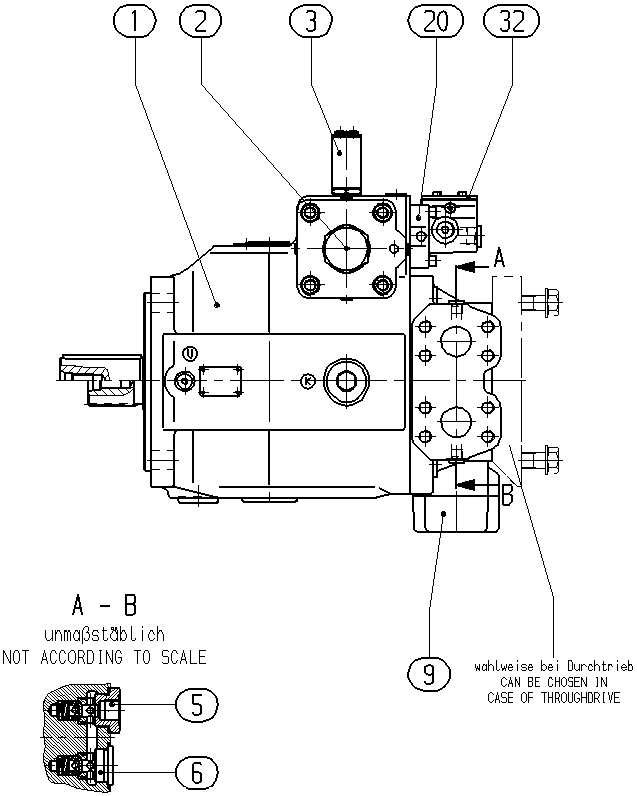

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910994696 | BASE UNIT Assembly parts list →L | 1 | ||
| R910985885 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R902471372 | INDUCTIVE POS.TRANSDUCER Assembly parts list →L | 1 | ||
| R910948834 | VALVE MOUNTING KIT | 1 | ||
| R910944807 | VALVE MOUNTING KIT | 1 | ||
| R902414231 | BLANK FLANGE Assembly parts list →L | 1 | ||
| R902414216 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R902456269 | COVER Assembly parts list →L | 1 | ||
| 61 | R902805709 | SHIPPING PROTECTION | 2 | |
| 62 | R902602206 | SEAL SCREW | 1 | |
| 64 | R902602013 | SEAL SCREW | 1 | |
| 71 | R902430610 | FLANGE COVER Assembly parts list →L | 1 | |
| 81 | R902602011 | SEAL SCREW | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure | A4VS |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 250 | 250 |
| Series | Series 3, index 0 | 30 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Drive shaft | Parallel keyed shaft DIN 6885 | P |
| Mounting flange | Based on ISO 3019-2 metric 4-hole | B |
| Working port | SAE flange ports A and B, located on same side, metric fastening thread | 10 |
| Through-drive | 160, 4-hole 50×2×24×9g | K34 |
| Valves | Without valve block | 0 |
| Filtration | Without filter | N |
