Unit · BASE UNIT
G A10VSO100 OV /32R-CPB12N00R902470100
Base unit Bosch Rexroth series A10VSO, type code GA10VSO100OV/32R-CPB12N00, material number R902470100. Nominal size: NG 100. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid (C). Drive shaft: parallel keyed shaft DIN 6885, limited suitability for through drive (P). Mounting flange: ISO 3019-2; 4-hole (B). Port: SAE flange ports fastening thread, top, bottom, opposite metric. (12). Through drive: without through drive (N00).
- Number
- R902470100
- Type code
- G A10VSO100 OV /32R-CPB12N00
- Group
- A10VSO 100
- Edition
- 06/2020

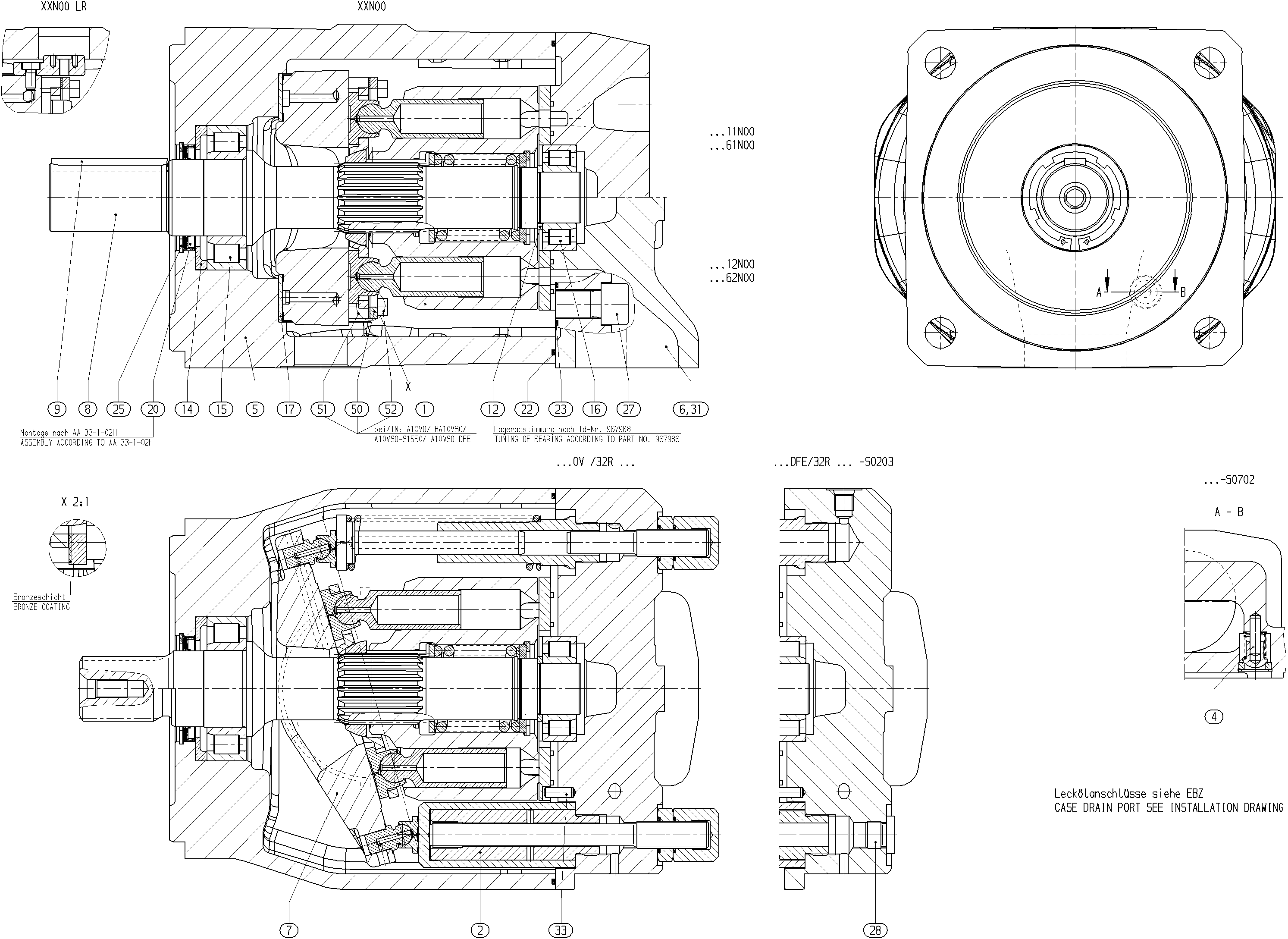

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902464782 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902541978 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R902469732 | PUMP HOUSING | 1 | ||
| R910995701 | CONNECTION PLATE | 1 | ||
| R902435871 | SWASH PLATE | 1 | ||
| R902469776 | DRIVE SHAFT | 1 | ||
| R910923559 | PARALLEL KEY | 1 | ||
| R910906878 | ADJUSTMENT SHIM | 1 | ||
| R902469793 | STOP RING | 1 | ||
| R910934053 | CYL. ROLLER BEARING | 1 | ||
| R910920476 | CYL. ROLLER BEARING | 1 | ||
| R910906881 | BEARING SHELL | 2 | ||
| R910916106 | ROTARY SHAFT LIP SEALD | 1 | ||
| R910906911 | O-RINGD | 1 | ||
| R913068283 | R-RINGD | 4 | ||
| R909832149 | RETAINING RING | 1 | ||
| R910389714 | SOCKET HEAD CAP SCREW | 4 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R902533908 | STRAIGHT PIN | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 100 | 100 |
| Series | Series 3, index 2 | 32 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid | C |
| Drive shaft | Parallel keyed shaft DIN 6885, limited suitability for through drive | P |
| Mounting flange | ISO 3019-2; 4-hole | B |
| Port | SAE flange ports fastening thread, top, bottom, opposite metric. | 12 |
| Through drive | without through drive | N00 |
