Unit · AXIAL-PISTON PUMP

A A10V O 63 DRS /53R-VSD12K52 -SO928R902470153

Axial piston pump Bosch Rexroth series A10VO, type code AA10VO63DRS/53R-VSD12K52-SO928, material number R902470153. Nominal size: NG 63. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged with flushing function (DRS). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 4-hole (D). Working port: SAE flange ports according to ISO 6162 metric fastening thread metric for through drive laterally opposite (12). Through drive: 82-2 (A) 3/4 in 11T 16/32DP (K52). Special version no. 928.

Number
R902470153
Type code
A A10V O 63 DRS /53R-VSD12K52 -SO928
Group
A10VO 63
Edition
06/2020

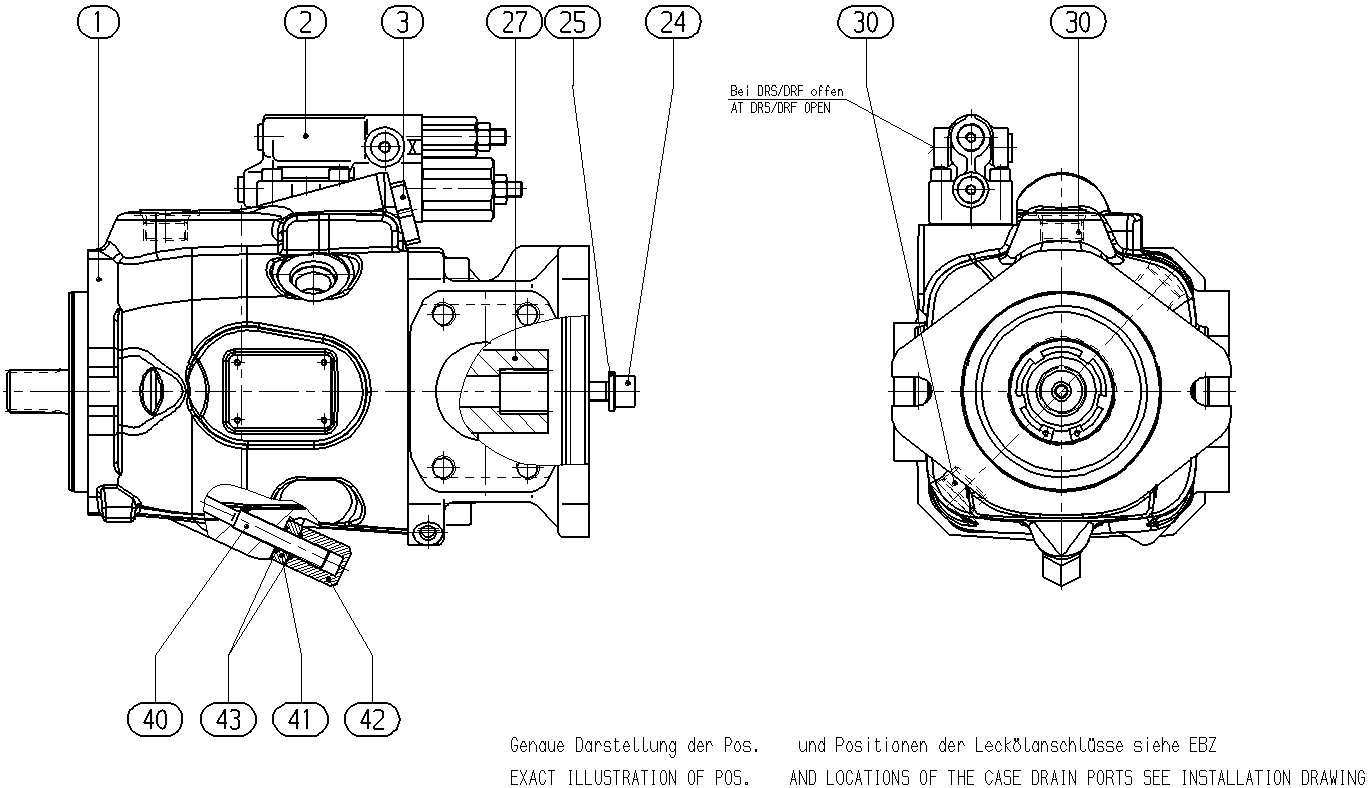

A A10V O 63 DRS /53R-VSD12K52 -SO928 — Drawing
Pos.NumberNameQtyAdd to inquiry
R902470144BASE UNIT Assembly parts list →L1
R902450439CONTROL VALVE Assembly parts list →L1
R902471690CONTROL Assembly parts list →L1
R902436200SPLINED COUPLING1
R910967343SCREW PLUG2
R910947854STOP SCREW1
R910998240NUT1
R910961839CAP NUT1
R910804886O-RING2

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi)A10V
Operating modePump, open circuitO
Size (NG)6363
Control devicewith flow controller X-T plugged with flushing functionDRS
SeriesSeries 5, index 353
Direction of rotationViewed on drive shaft clockwiseR
Sealing materialFKM (fluorocarbon rubber)V
Mounting flangeBased on ISO 3019-1 (SAE) 4-holeD
Working portSAE flange ports according to ISO 6162 metric fastening thread metric for through drive laterally opposite12
Through drive82-2 (A) 3/4 in 11T 16/32DPK52

Other versions 6
