Unit · AXIAL-PISTON PUMP

AL A10V O 85ED 72/52R-VSC12K07PR902470573

Axial piston pump Bosch Rexroth series A10VO, type code ALA10VO85ED72/52R-VSC12K07P, material number R902470573. Nominal size: NG 85. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Control device: electric U = 24 V (ED72). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange ports according to ISO 6162 metric fastening thread metric for through drive laterally opposite (12). Through drive: 127-2 (C) 1 1/4 in 14T12/24DP (K07). Connector for solenoids: DEUTSCH – molded connector, 2-pin – without suppressor diode (for electric controls) (P).

Number
R902470573
Type code
AL A10V O 85ED 72/52R-VSC12K07P
Group
A10VO 85
Edition
06/2020

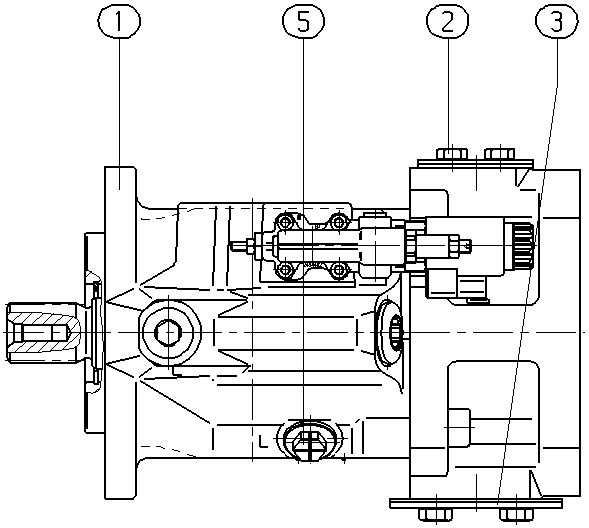

AL A10V O 85ED 72/52R-VSC12K07P — Drawing
Pos.NumberNameQtyAdd to inquiry
R902470574AXIAL-PISTON PUMP Assembly parts list →L1
R902400584FLANGE COVER1
R902400594FLANGE COVER1
R902603191SEAL SCREW1

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi)A10V
Operating modePump, open circuitO
Size (NG)8585
Control deviceelectric U = 24 VED72
SeriesSeries 5, index 252
Direction of rotationViewed on drive shaft clockwiseR
Sealing materialFKM (fluorocarbon rubber)V
Mounting flangeBased on ISO 3019-1 (SAE) 2-holeC
Working portSAE flange ports according to ISO 6162 metric fastening thread metric for through drive laterally opposite12
Through drive127-2 (C) 1 1/4 in 14T12/24DPK07
Connector for solenoidsDEUTSCH – molded connector, 2-pin – without suppressor diode (for electric controls)P

Other versions 1
