Unit · AXIAL-PISTON PUMP
A A10VSO 28DSE/31L-VSC11N00R902470595
Axial piston pump Bosch Rexroth series A10VSO, type code AA10VSO28DSE/31L-VSC11N00, material number R902470595. Nominal size: NG 28. Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: splined shaft standard shaft ISO 3019-1 (S). Mounting flange: ISO 3019-1 2-hole (C). Through drive: without through drive (N00).
- Number
- R902470595
- Type code
- A A10VSO 28DSE/31L-VSC11N00
- Group
- A10VSO 28
- Edition
- 06/2020

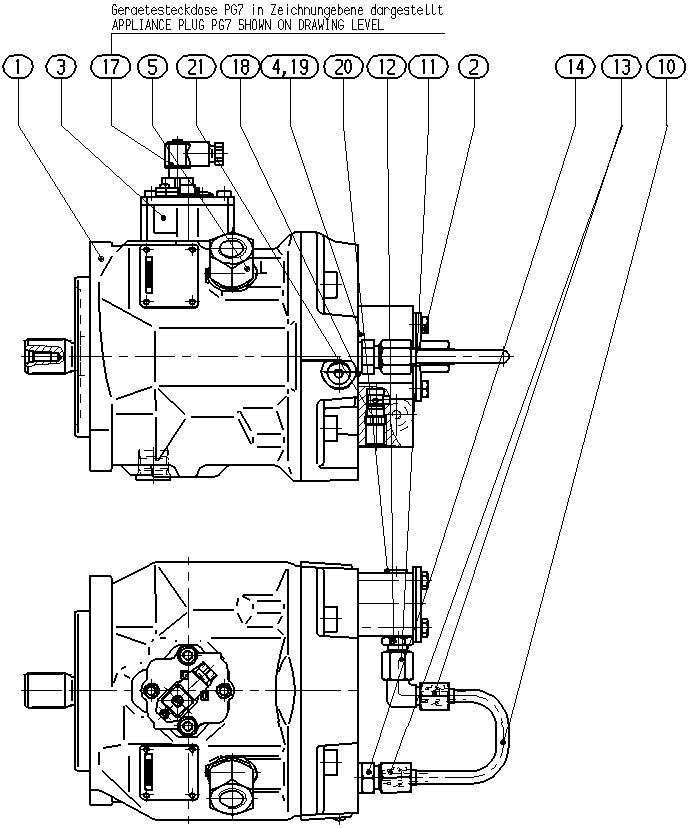

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902470656 | BASE UNIT Assembly parts list →L | 1 | ||
| R902452844 | FLANGE COVER | 1 | ||
| R900868651 | ASSEMBLY KIT | 1 | ||
| R902483348 | INTERMEDIATE PLATE | 1 | ||
| R910929857 | ADAPTER Assembly parts list →L | 1 | ||
| R902483571 | PIPE Assembly parts list →L | 1 | ||
| R910909244 | THREADED FASTENER | 1 | ||
| R910948773 | THREADED FASTENER | 1 | ||
| R910948774 | INTERMEDIATE RING | 2 | ||
| R910960552 | MALE CONNECTOR | 1 | ||
| R902650462 | EQUIPMENT SOCKET | 1 | ||
| R902434482 | SEAL | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R910764647 | SCREW PLUG | 1 | ||
| R910910752 | SHUTTLE VALVE | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Operating mode | Pump, open circuit | O |
| Size (NG) | 28 | 28 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Splined shaft standard shaft ISO 3019-1 | S |
| Mounting flange | ISO 3019-1 2-hole | C |
| Through drive | Without through drive | N00 |
