Unit · BASE UNIT
GA20VNO85DR/11L-VSD24XXXR902470729
Base unit Bosch Rexroth series A20VO, type code GA20VNO85DR/11L-VSD24XXX, material number R902470729. Nominal size: NG 85. Axial piston unit: swashplate design, variable (back to back version) (A20V). Additional function: without charge pump for low pressure area (N). Operating mode: double pump, open circuit (O). Directions of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: splined shaft ISO 3019-1 (S). Mounting flange: ISO 3019-1 4-hole (D). Working port: SAE flanges, two port B and one port S laterally opposite, metric fastening thread (24).
- Number
- R902470729
- Type code
- GA20VNO85DR/11L-VSD24XXX
- Group
- A20VNO 85
- Edition
- 06/2020

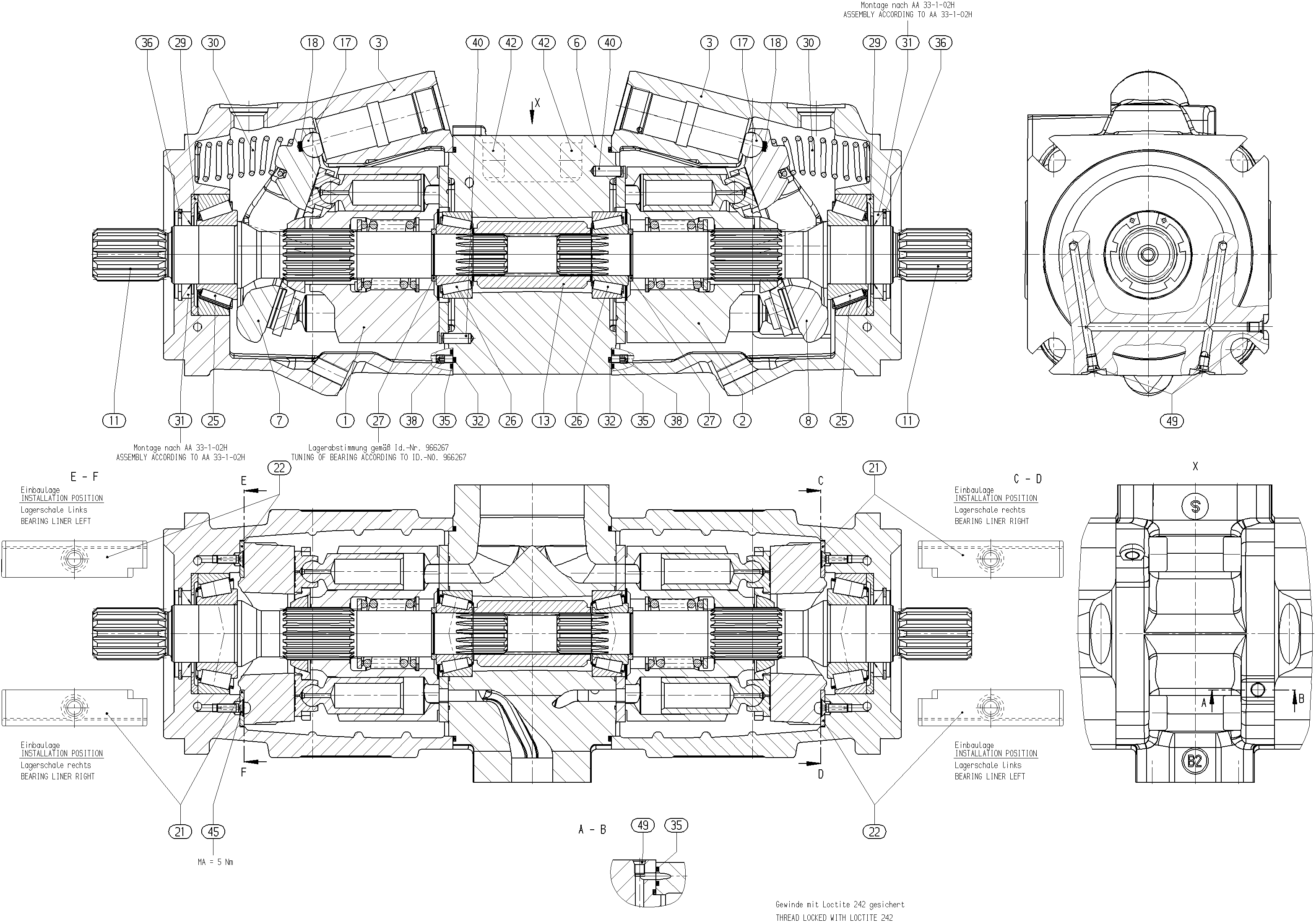

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902453673 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902451201 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902453178 | PUMP HOUSING | 2 | ||
| R902546034 | CONNECTION PLATE | 1 | ||
| R902443756 | SWASH PLATE | 1 | ||
| R902443755 | SWASH PLATE | 1 | ||
| R902420383 | DRIVE SHAFT | 1 | ||
| 12 | R902413429 | DRIVE SHAFT | 1 | |
| R910979644 | SPLINED COUPLING | 1 | ||
| R910984014 | BALL STOP | 2 | ||
| R902473753 | COMPRESSION SPRINGD | 2 | ||
| R902424620 | BEARING SHELLD | 2 | ||
| R902424619 | BEARING SHELL | 2 | ||
| R910720224 | TAPERED-ROLLER BEARING | 2 | ||
| R910973501 | TAPERED-ROLLER BEARING | 2 | ||
| R910966528 | ADJUSTMENT SHIM | 2 | ||
| R910989235 | STOP RING | 2 | ||
| R902422349 | COMPRESSION SPRING | 2 | ||
| R909831661 | SHAFT SEALING RING | 2 | ||
| R910975112 | O-RING | 2 | ||
| R910942133 | R-RING | 4 | ||
| R910941918 | RETAINING RING | 2 | ||
| R910968739 | THROTTLE SCREW | 2 | ||
| R902533908 | STRAIGHT PIN | 2 | ||
| R910402303 | SOCKET HEAD CAP SCREW | 8 | ||
| R902419666 | COUNTERSUNK-HEAD SCREW | 4 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 6 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable (back to back version) | A20V |
| Additional function | Without charge pump for low pressure area | N |
| Operating mode | Double pump, open circuit | O |
| Size (NG) | 85 | 85 |
| Directions of rotation | Viewed on drive shaft counter-clockwise | L |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Splined shaft ISO 3019-1 | S |
| Mounting flange | ISO 3019-1 4-hole | D |
| Working port | SAE flanges, two port B and one port S laterally opposite, metric fastening thread | 24 |
