Unit · AXIAL-PISTON PUMP
ALA10VO63ED71/53R-VWC23K01P-S2528R902470913
Axial piston pump Bosch Rexroth series A10VO, type code ALA10VO63ED71/53R-VWC23K01P-S2528, material number R902470913. Nominal size: NG 63. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Control device: electric U = 12 V negative control (ED71). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: similar to shaft "U", however for higher torque only conditionally suitable for mounting with through drive. For mounting options (W). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Through drive: 82-2 (A) 5/8 in 9T 16/32DP (K01). Connector for solenoids: DEUTSCH – molded connector, 2-pin – without suppressor diode (for electric controls) (P). Special version no. 2528.
- Number
- R902470913
- Type code
- ALA10VO63ED71/53R-VWC23K01P-S2528
- Group
- A10VO 63
- Edition
- 06/2020

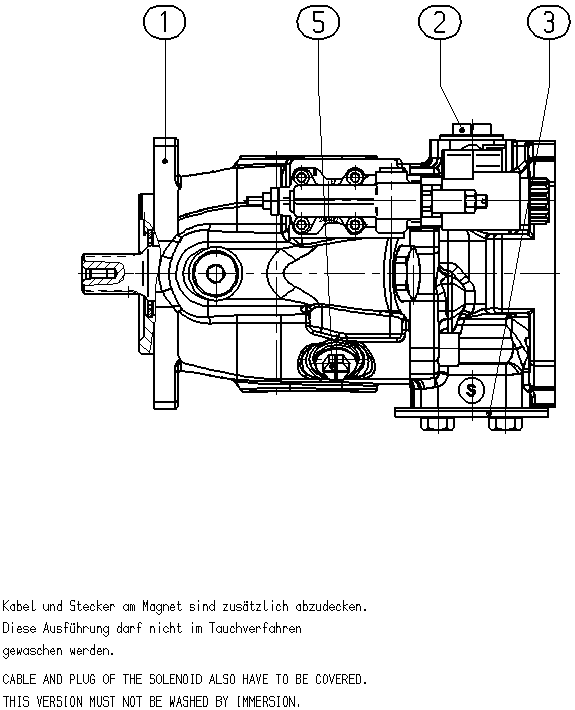

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902470914 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902602013 | SEAL SCREW | 1 | ||
| R902432059 | FLANGE COVER | 1 | ||
| R902602011 | SEAL SCREW | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 63 | 63 |
| Control device | electric U = 12 V negative control | ED71 |
| Series | Series 5, index 3 | 53 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | similar to shaft "U", however for higher torque only conditionally suitable for mounting with through drive. For mounting options | W |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Through drive | 82-2 (A) 5/8 in 9T 16/32DP | K01 |
| Connector for solenoids | DEUTSCH – molded connector, 2-pin – without suppressor diode (for electric controls) | P |
