Unit · AXIAL-PISTON PUMP

AL A10V O 74 DFR1/31R-VSC12N00 -S1695R902471018

Axial piston pump Bosch Rexroth series A10VO, type code ALA10VO74DFR1/31R-VSC12N00-S1695, material number R902471018. Nominal size: NG 74. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged, with flushing function (DFR1). Direction of rotation: viewed on drive shaft Clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive (12). Through drive: without through drive (N00). Special version no. 1695.

Number
R902471018
Type code
AL A10V O 74 DFR1/31R-VSC12N00 -S1695
Group
A10VO 74
Edition
06/2020

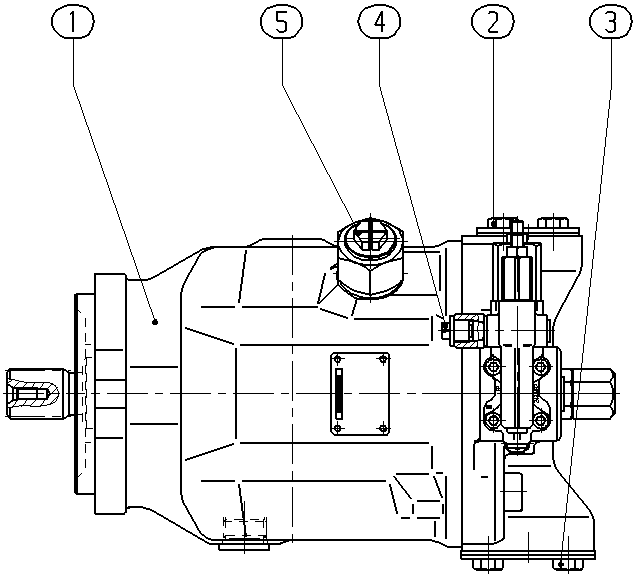

AL A10V O 74 DFR1/31R-VSC12N00 -S1695 — Drawing
Pos.NumberNameQtyAdd to inquiry
R902471019AXIAL-PISTON PUMP Assembly parts list →L1
R902400582FLANGE COVER1
R902400592FLANGE COVER1
R902602008SEAL SCREW1
R902602011SEAL SCREW1

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi)A10V
Operating modePump, open circuitO
Size (NG)7474
Control deviceWith flow controller X-T plugged, with flushing functionDFR1
SeriesSeries 3, index 131
Direction of rotationViewed on drive shaft ClockwiseR
Sealing materialFKM (fluorocarbon rubber)V
Mounting flangeBased on ISO 3019-1 (SAE) 2-holeC
Working portSAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive12
Through driveWithout through driveN00
