Unit · AXIAL-PISTON PUMP
A A10V O 45DFLR1/31R-VSC62K68 -SO108R902471289
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO45DFLR1/31R-VSC62K68-SO108, material number R902471289. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: pressure, flow and power controller (DFLR). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive (62). Through drive: 101-2 (B) 7/8 in 13T 16/32DP (K68). Special version no. 108.
- Number
- R902471289
- Type code
- A A10V O 45DFLR1/31R-VSC62K68 -SO108
- Group
- A10VO 45
- Edition
- 06/2020

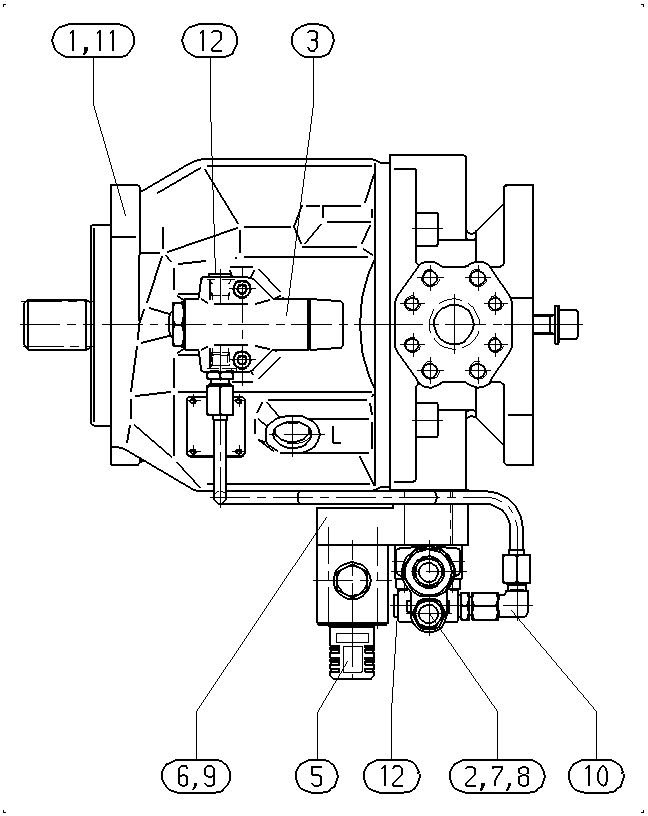

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902456257 | BASE UNIT Assembly parts list →L | 1 | ||
| R902451762 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902533217 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910996456 | DIRECTIONAL SPOOL VALVE Assembly parts list →L | 1 | ||
| R902472640 | CONTROL BLOCK Assembly parts list →L | 1 | ||
| R902650500 | SOCKET HEAD CAP SCREW | 4 | ||
| R902434482 | SEAL | 1 | ||
| R910785105 | SOCKET HEAD CAP SCREW | 4 | ||
| R910965674 | PIPING Assembly parts list →L | 1 | ||
| R902468380 | POWER DIAGRAM | 1 | ||
| R910764647 | SCREW PLUG | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 45 | 45 |
| Control device | Pressure, flow and power controller | DFLR |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive | 62 |
| Through drive | 101-2 (B) 7/8 in 13T 16/32DP | K68 |
