Unit · AXIAL-PISTON PUMP
A A4VSO 125 FRG /30R-PZB13K34R902471367
Axial piston pump Bosch Rexroth series A4VSO, type code AA4VSO125FRG/30R-PZB13K34, material number R902471367. Nominal size: NG 125. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A4VS). Operating mode: pump, open circuit (O). Directions of rotation: viewed on drive shaft Clockwise (R). Drive shafts: splined shaft DIN 5480 (Z). Mounting flange: based on ISO 3019-2 (metric) 4-hole (B). Through drive: 160-4 50x2x24x9g A4VS NG125 and NG180 (34).
- Number
- R902471367
- Type code
- A A4VSO 125 FRG /30R-PZB13K34
- Group
- A4VSO 125
- Edition
- 07/2020

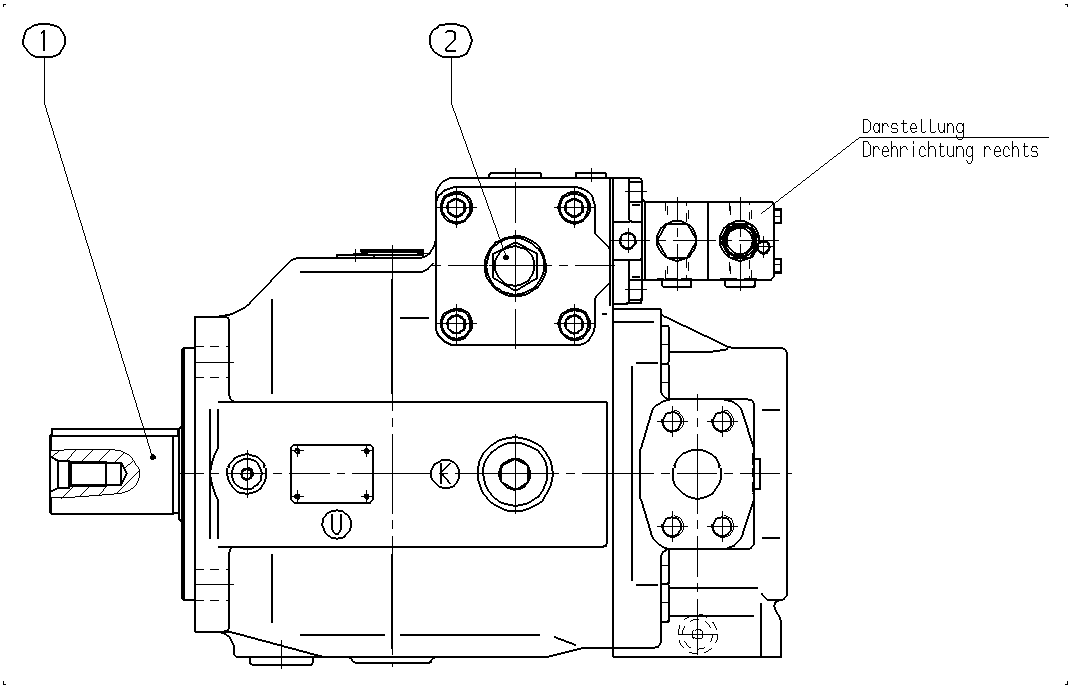

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902405668 | BASE UNIT Assembly parts list →L | 1 | ||
| R902402761 | REGULATOR Assembly parts list →L | 1 | ||
| 61 | R902421947 | SHIPPING PROTECTION | 1 | |
| 62 | R902602013 | SEAL SCREW | 1 | |
| 63 | R902421950 | SHIPPING PROTECTION | 1 | |
| 71 | R902430610 | FLANGE COVER Assembly parts list →L | 1 | |
| 81 | R902602008 | SEAL SCREW | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A4VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 125 | 125 |
| Series | Series 3, index 0 | 30 |
| Directions of rotation | Viewed on drive shaft Clockwise | R |
| Drive shafts | Splined shaft DIN 5480 | Z |
| Mounting flange | Based on ISO 3019-2 (metric) 4-hole | B |
| Through drive | 160-4 50x2x24x9g A4VS NG125 and NG180 | 34 |
