Unit · AXIAL-PISTON PUMP
AL A10V O 71ED 72/31L-VSC62K04P -SO 23R902471420
Axial piston pump Bosch Rexroth series A10VO, type code ALA10VO71ED72/31L-VSC62K04P-SO23, material number R902471420. Nominal size: NG 71. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with pressure cut-off Electric U = 24 V (ED72). Direction of rotation: viewed on drive shaft Counter-clockwise (L). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive (62). Through drive: 101-2 (B) 1 in 15T 16/32DP (K04). Connector for solenoids: DEUTSCH - molded connector, 2-pin, without suppressor diode (P). Special version no. 23.
- Number
- R902471420
- Type code
- AL A10V O 71ED 72/31L-VSC62K04P -SO 23
- Group
- A10VO 71
- Edition
- 06/2020

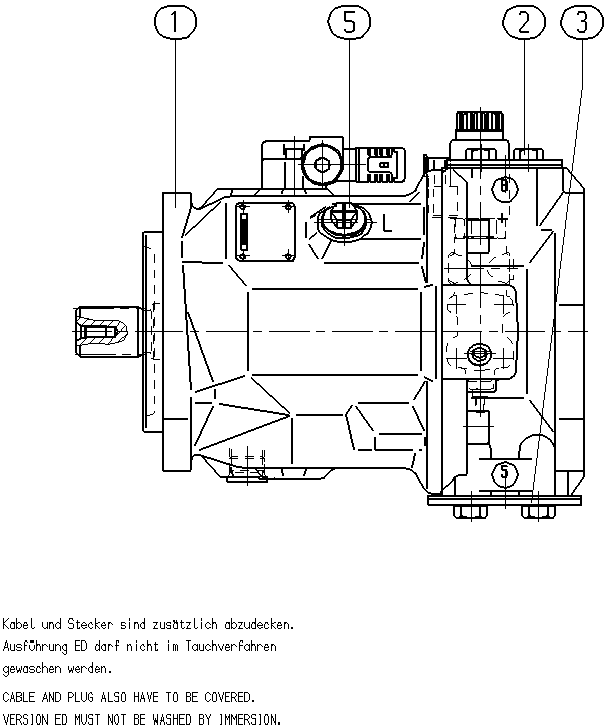

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902471421 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902534067 | FLANGE COVER | 1 | ||
| R902400591 | FLANGE COVER | 1 | ||
| R902603190 | SEAL SCREW | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 71 | 71 |
| Control device | With pressure cut-off Electric U = 24 V | ED72 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft Counter-clockwise | L |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive | 62 |
| Through drive | 101-2 (B) 1 in 15T 16/32DP | K04 |
| Connector for solenoids | DEUTSCH - molded connector, 2-pin, without suppressor diode | P |
