Unit · AXIAL-PISTON PUMP
A A10VNO 28 DRF/53R-VTC12N00 -S2672R902471860
Axial piston pump Bosch Rexroth series A10VNO, type code AA10VNO28DRF/53R-VTC12N00-S2672, material number R902471860. Nominal size: NG 28. Axial piston unit: swashplate design, variable, nominal pressure 210 bar (3050 psi), maximum pressure 250 bar (3600 psi) (A10VN). Operating mode: pump, open circuit (O). Control device: with flow controller X-T open hydraulic (DRF). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: according to ISO 6162 laterally opposite for through drive (12). Through drive: without through drive (N00). Special version no. 2672.
- Number
- R902471860
- Type code
- A A10VNO 28 DRF/53R-VTC12N00 -S2672
- Group
- A10VNO 28
- Edition
- 06/2020

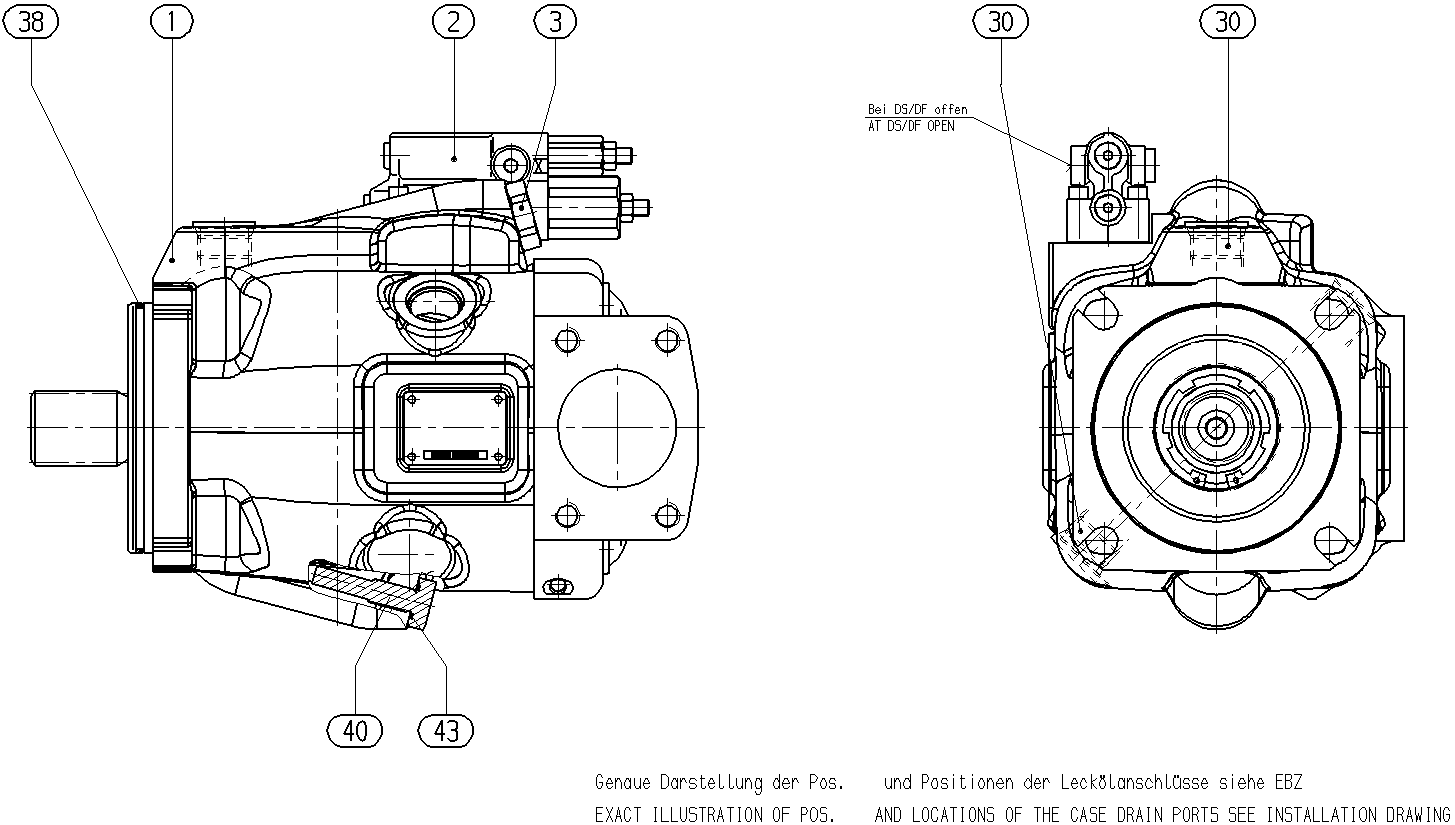

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902470590 | BASE UNIT Assembly parts list →L | 1 | ||
| R902455608 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902470938 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R910901969 | SCREW PLUG | 2 | ||
| R910946966 | O-RING | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 210 bar (3050 psi), maximum pressure 250 bar (3600 psi) | A10VN |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 28 | 28 |
| Control device | with flow controller X-T open hydraulic | DRF |
| Series | Series 5, index 3 | 53 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | according to ISO 6162 laterally opposite for through drive | 12 |
| Through drive | Without through drive | N00 |
