Unit · AXIAL-PISTON PUMP

A A10VNO 85 DRS /53R-VWC11N00 -S4987R902472183

Axial piston pump Bosch Rexroth series A10VNO, type code AA10VNO85DRS/53R-VWC11N00-S4987, material number R902472183. Nominal size: NG 85. Axial piston unit: swashplate design, variable, nominal pressure 210 bar (3050 psi), maximum pressure 250 bar (3600 psi) (A10VN). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged with flushing function (DRS). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: according to ISO 6162 rear not for through drive (11). Through drive: without through drive (N00). Special version no. 4987.

Number: R902472183
Type code: A A10VNO 85 DRS /53R-VWC11N00 -S4987
Group: A10VNO 85
Edition: 06/2020

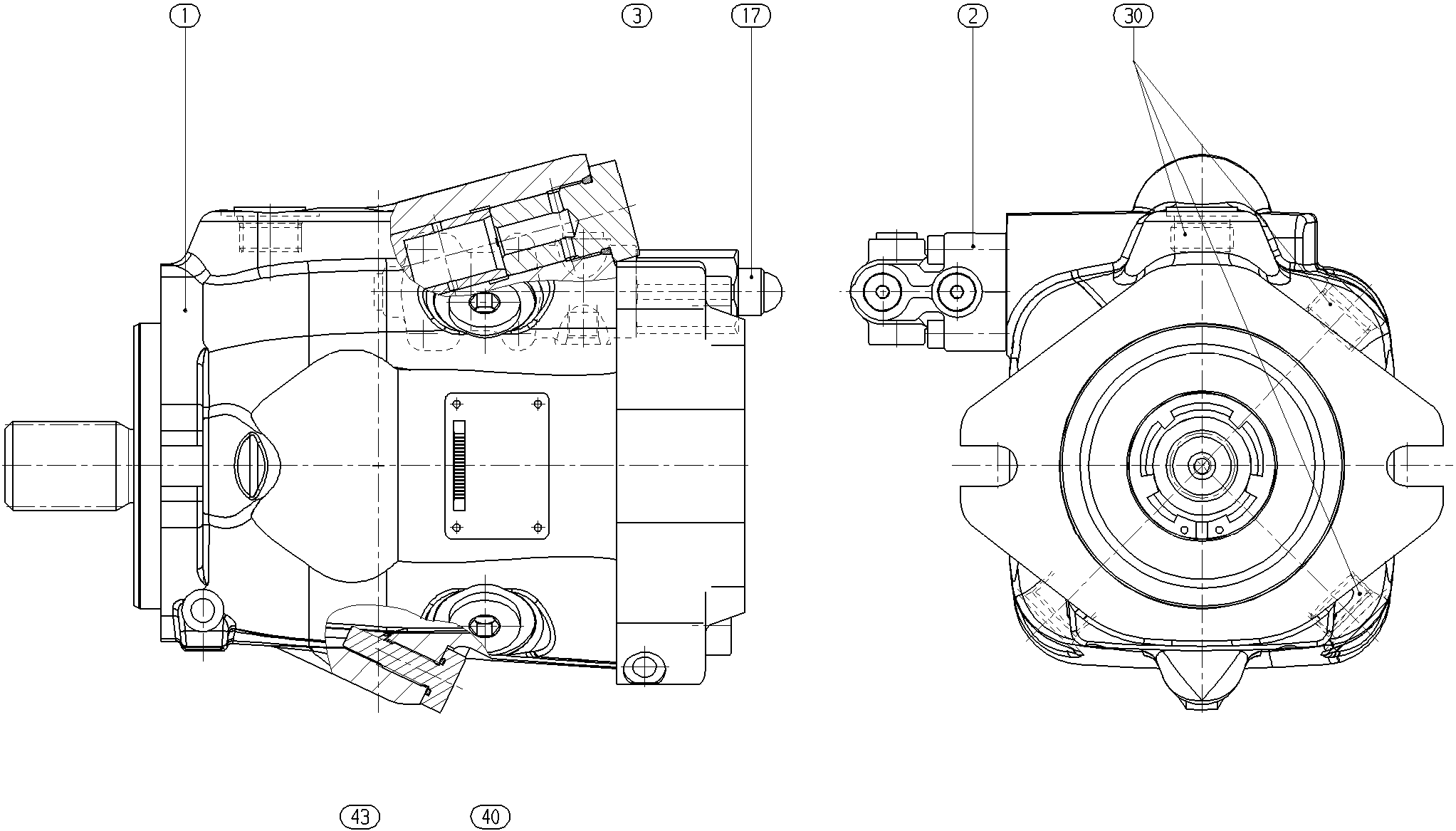

A A10VNO 85 DRS /53R-VWC11N00 -S4987 — Drawing

Pos.	Number	Name	Qty
	R902468355	BASE UNIT Assembly parts list →L	1
	R902452299	CONTROL VALVE Assembly parts list →L	1
	R902472209	CONTROL Assembly parts list →L	1
	R910967343	SCREW PLUG	3
	R902427032	STOP SCREW	1
	R910804886	O-RING	1
75	R902651077	PROTECTIVE CAP	2

Parameters from the type code

Item	Meaning	Code
Axial piston unit	Swashplate design, variable, nominal pressure 210 bar (3050 psi), maximum pressure 250 bar (3600 psi)	A10VN
Operating mode	Pump, open circuit	O
Size (NG)	85	85
Control device	with flow controller X-T plugged with flushing function	DRS
Series	Series 5, index 3	53
Direction of rotation	Viewed on drive shaft clockwise	R
Sealing material	FKM (fluorocarbon rubber)	V
Mounting flange	Based on ISO 3019-1 (SAE) 2-hole	C
Working port	according to ISO 6162 rear not for through drive	11
Through drive	Without through drive	N00

Parameters from the type code
