Unit · AXIAL-PISTON PUMP
AL A10V O180 DRS /32R-VSD72U06 -SO413R902473041
Axial piston pump Bosch Rexroth series A10VO, type code ALA10VO180DRS/32R-VSD72U06-SO413, material number R902473041. Nominal size: NG 180. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (A10V). Operating mode: pump, open circuit (O). Control devices: with flow controller X-T plugged with flushing function (DRS). Directions of rotation: viewed on drive shaft clockwise (R). Seal: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) SAE C; 4-hole (D).
- Number
- R902473041
- Type code
- AL A10V O180 DRS /32R-VSD72U06 -SO413
- Group
- A10VO 180
- Edition
- 06/2020

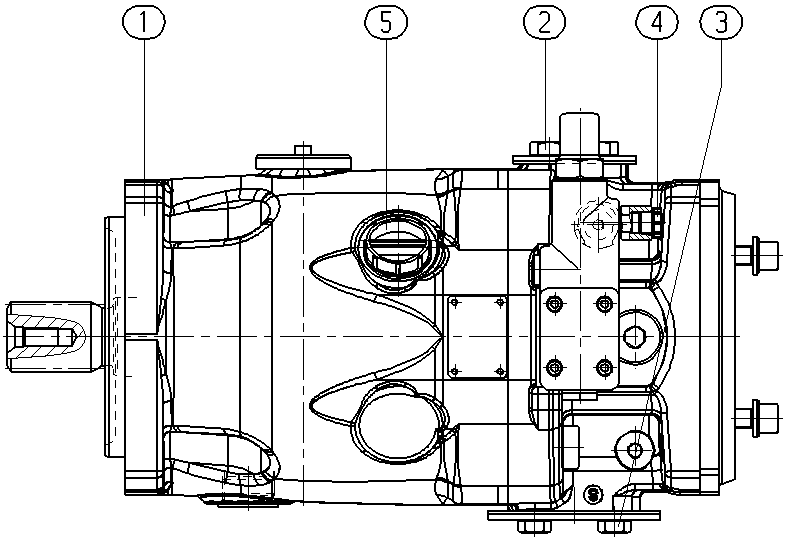

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902473042 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902400585 | FLANGE COVER | 1 | ||
| R902400595 | FLANGE COVER | 1 | ||
| R902602014 | SEAL SCREW | 1 | ||
| R902603192 | SEAL SCREW | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar | A10V |
| Operating mode | Pump, open circuit | O |
| Sizes (NG) | 180 | 180 |
| Control devices | with flow controller X-T plugged with flushing function | DRS |
| Series | Series 3, index 2 | 32 |
| Directions of rotation | Viewed on drive shaft clockwise | R |
| Seal | FKM (fluorocarbon rubber) | V |
| Mounting flange | Based on ISO 3019-1 (SAE) SAE C; 4-hole | D |
