Unit · BASE UNIT
G A10V O 85 OV /52R-VUC62N00 -S2667R902473068
Base unit Bosch Rexroth series A10VO, type code GA10VO85OV/52R-VUC62N00-S2667, material number R902473068. Nominal size: NG 85. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: reduced diameter, limited suitability for through drive (U). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange ports according to ISO 6162 UNC fastening thread UNC for through drive laterally opposite (62). Through drive: without through drive (N00). Special version no. 2667.
- Number
- R902473068
- Type code
- G A10V O 85 OV /52R-VUC62N00 -S2667
- Group
- A10VO 85
- Edition
- 06/2020

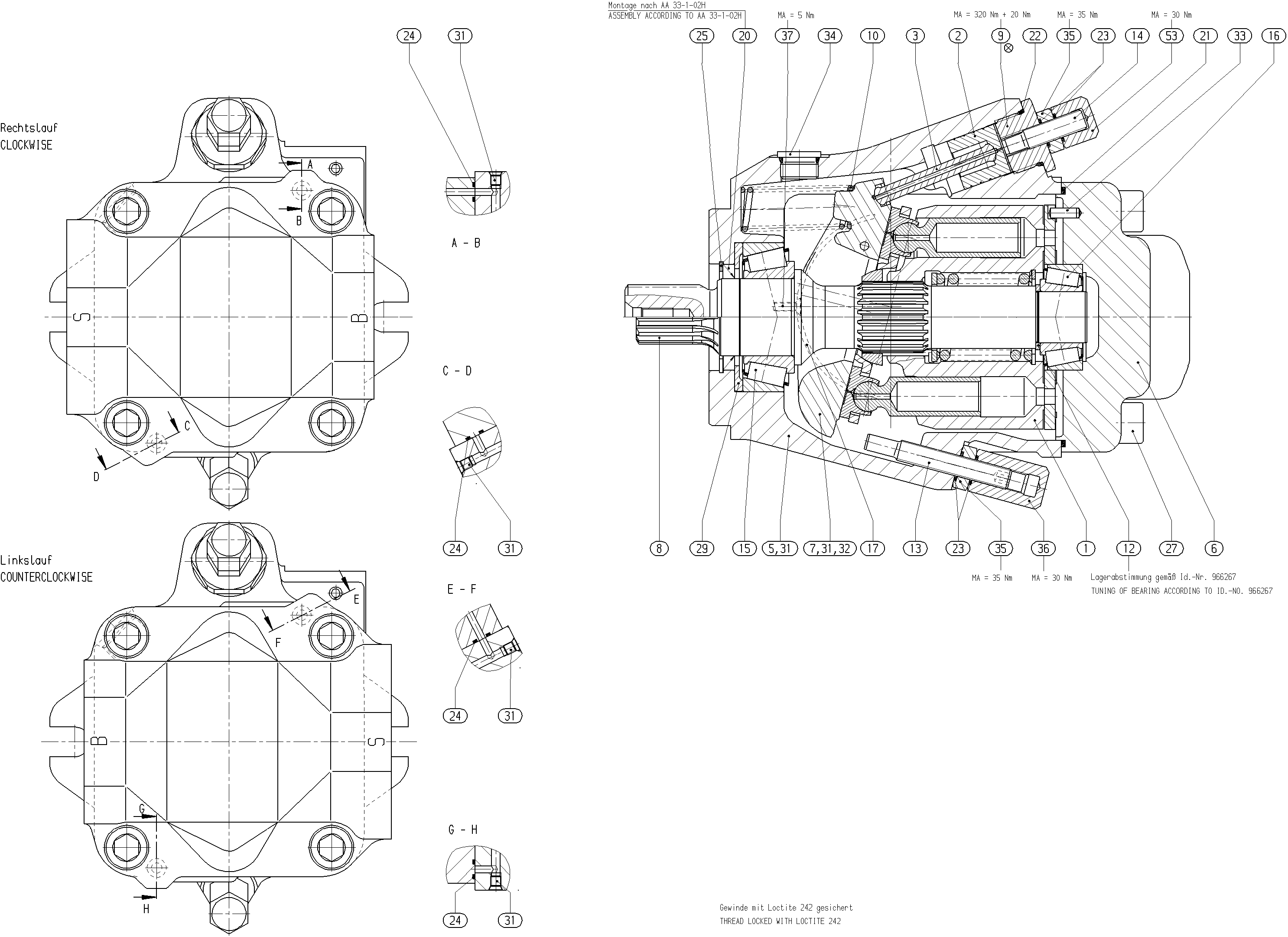

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902473198 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902417392 | ADJUSTING PISTON | 1 | ||
| R910989909 | PISTON ROD | 1 | ||
| R902412261 | MOTOR HOUSING | 1 | ||
| R902403606 | CONNECTION PLATE | 1 | ||
| R902427654 | SWASH PLATE | 1 | ||
| R910996175 | DRIVE SHAFT | 1 | ||
| R902566187 | SCREW PLUG | 1 | ||
| R910573345 | COMPRESSION SPRING | 1 | ||
| R910906878 | ADJUSTMENT SHIM | 1 | ||
| R902410509 | STOP SCREW | 1 | ||
| R902532356 | STOP SCREW | 1 | ||
| R910906908 | TAPERED-ROLLER BEARING | 1 | ||
| R910906909 | TAPERED-ROLLER BEARING | 1 | ||
| R910990277 | BEARING SHELL | 2 | ||
| R910113174 | SHAFT SEALING RINGD | 1 | ||
| R913052062 | O-RINGD | 1 | ||
| R910973148 | O-RINGD | 1 | ||
| R910919314 | O-RING | 4 | ||
| R910942133 | R-RINGD | 2 | ||
| R909832149 | RETAINING RING | 1 | ||
| R910389714 | SOCKET HEAD CAP SCREW | 4 | ||
| R902402391 | STOP RING | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 3 | ||
| R910925530 | NOZZLE | 1 | ||
| R902533908 | STRAIGHT PIN | 1 | ||
| R902426516 | SCREW PLUG | 1 | ||
| R910903390 | NUT | 2 | ||
| R910989878 | CAP NUT | 1 | ||
| R910993660 | COUNTERSUNK-HEAD SCREW | 2 | ||
| R910903349 | CAP NUT | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 85 | 85 |
| Series | Series 5, index 2 | 52 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | reduced diameter, limited suitability for through drive | U |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange ports according to ISO 6162 UNC fastening thread UNC for through drive laterally opposite | 62 |
| Through drive | Without through drive | N00 |
Other versions 8
- R902417728 G A10V O 85 OV /52R-VUC62N00
- R902503601 G A10V O 85 OV /52R-VUC62N00 -S1079
- R902428254 G A10V O 85 OV /52R-VUC62N00 -S1359
- R902505051 G A10V O 85 OV /52R-VUC62N00 -S2222
- R902472649 G A10V O 85 OV /52R-VUC62N00 -S2688
- R902473721 G A10V O 85 OV /52R-VUC62N00 -S2715
- R902571331 G A10V O 85 OV /52R-VUC62N00 -SO 97
- R902432854 G A10V O 85 OV /52R-VUC62N00 -SO262
