Unit · BASE UNIT
GE A10VSO 45 OV /31R-PPA12KB4R902473072
Base unit Bosch Rexroth series A10VSO, type code GEA10VSO45OV/31R-PPA12KB4, material number R902473072. Nominal size: NG 45. Version: HFA, HFB, HFC hydraulic fluid (E). Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid (P). Drive shaft: parallel keyed shaft DIN 6885 permissible through-drive torque (P). Mounting flange: ISO 3019-2 2-hole (A). Working port: SAE flange ports according to ISO 6162, metric fastening thread laterally opposite (12). Through drive: for flange ISO 3019-2 Diameter, 100, 2-hole 1 in 15T 16/32DP (KB4).
- Number
- R902473072
- Type code
- GE A10VSO 45 OV /31R-PPA12KB4
- Group
- A10VSO 45
- Edition
- 06/2020

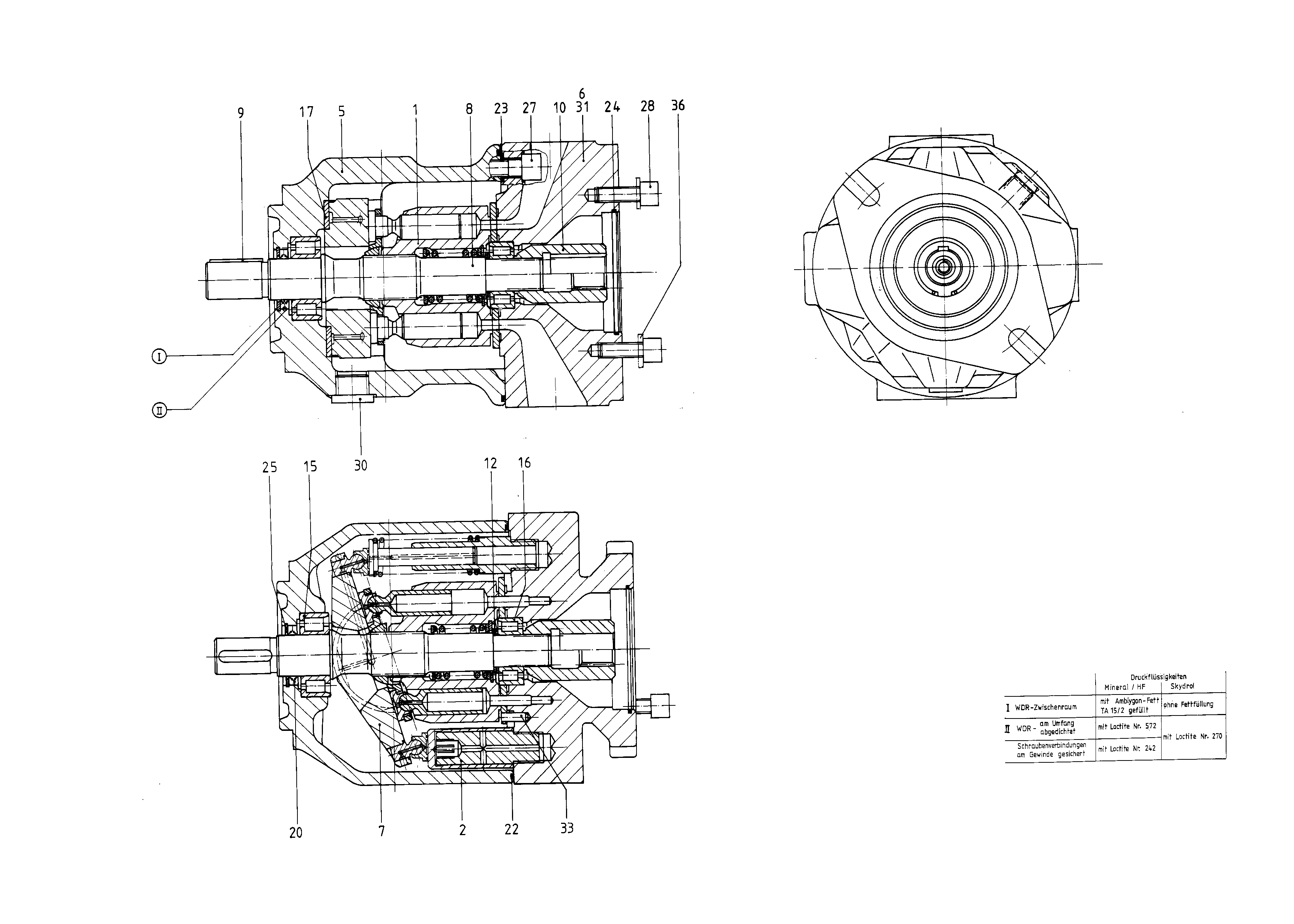

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902559903 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R910910852 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R902546047 | PUMP HOUSING | 1 | ||
| R902543238 | CONNECTION PLATE | 1 | ||
| R910961024 | SWASH PLATE Assembly parts list →L | 1 | ||
| R902417379 | DRIVE SHAFT | 1 | ||
| R910103438 | PARALLEL KEY | 1 | ||
| R902436103 | SPLINED COUPLING | 1 | ||
| R910938955 | ADJUSTMENT SHIM | 2 | ||
| R910710911 | CYL. ROLLER BEARING | 1 | ||
| R910710938 | CYL. ROLLER BEARING | 1 | ||
| R910900198 | BEARING SHELL | 2 | ||
| R910916104 | SHAFT SEALING RINGD | 1 | ||
| R910704997 | O-RINGD | 1 | ||
| R913052114 | R-RINGD | 4 | ||
| R910384259 | O-RINGD | 1 | ||
| R902403814 | RETAINING RING | 1 | ||
| R910220264 | SOCKET HEAD CAP SCREW | 4 | ||
| R909151694 | SCREW PLUGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R902533908 | STRAIGHT PIN | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Version | HFA, HFB, HFC hydraulic fluid | E |
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 45 | 45 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid | P |
| Drive shaft | Parallel keyed shaft DIN 6885 permissible through-drive torque | P |
| Mounting flange | ISO 3019-2 2-hole | A |
| Working port | SAE flange ports according to ISO 6162, metric fastening thread laterally opposite | 12 |
| Through drive | For flange ISO 3019-2 Diameter, 100, 2-hole 1 in 15T 16/32DP | KB4 |
