Unit · AXIAL-PISTON PUMP
A A10VNO 45ED 72/52L-VRC11N00P -S2746R902473150
Axial piston pump Bosch Rexroth series A10VNO, type code AA10VNO45ED72/52L-VRC11N00P-S2746, material number R902473150. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 210 bar (3050 psi), maximum pressure 250 bar (3600 psi) (A10VN). Operating mode: pump, open circuit (O). Control device: electric U = 24 V (ED72). Direction of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: similar to shaft "S" however for torque (R). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: according to ISO 6162 rear not for through drive (11). Through drive: without through drive (N00). Connector for solenoids: DEUTSCH – molded connector, 2-pin – without suppressor diode (for electric controls) (P). Special version no. 2746.
- Number
- R902473150
- Type code
- A A10VNO 45ED 72/52L-VRC11N00P -S2746
- Group
- A10VNO 45
- Edition
- 06/2020

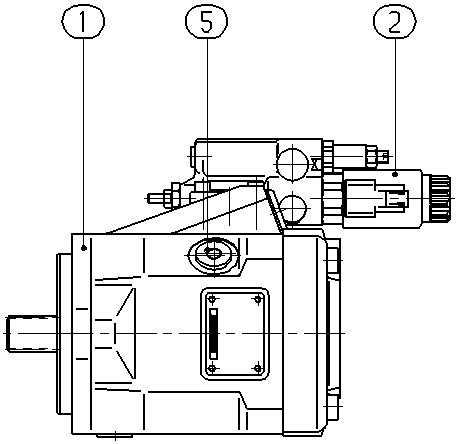

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902483572 | BASE UNIT Assembly parts list →L | 1 | ||
| R902533432 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910901969 | SCREW PLUG | 1 | ||
| 70 | R902421944 | SHIPPING PROTECTION | 1 | |
| 71 | R902421946 | SHIPPING PROTECTION | 1 | |
| 75 | R909830326 | NAMEPLATE | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 210 bar (3050 psi), maximum pressure 250 bar (3600 psi) | A10VN |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 45 | 45 |
| Control device | electric U = 24 V | ED72 |
| Series | Series 5, index 2 | 52 |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | similar to shaft "S" however for torque | R |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | according to ISO 6162 rear not for through drive | 11 |
| Through drive | Without through drive | N00 |
| Connector for solenoids | DEUTSCH – molded connector, 2-pin – without suppressor diode (for electric controls) | P |
Other versions 8
- R902503683 A A10VNO 45ED 72/52L-VRC11N00P
- R902480120 A A10VNO 45ED 72/52L-VRC11N00P -S1457
- R902517647 A A10VNO 45ED 72/52L-VRC11N00P -S3456
- R902503681 AL A10VNO 45ED 72/52L-VRC11N00P
- R992002017 AL A10VNO 45ED 72/52L-VRC11N00P
- R902517513 AL A10VNO 45ED 72/52L-VRC11N00P -S3456
- R902549686 AL A10VNO 45ED 72/52L-VRC11N00P -S4655
- R902505306 ALA10VNO45ED72/52L-VRC11N00P-S2274
