Unit · AXIAL-PISTON PUMP
A A4VSO 40 MA /10R-PPB13KB3R902473491
Axial piston pump Bosch Rexroth series A4VSO, type code AA4VSO40MA/10R-PPB13KB3, material number R902473491. Nominal size: NG 40. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A4VS). Operating mode: pump, open circuit (O). Control device Information on controller selection: manual control (MA). Directions of rotation: viewed on drive shaft Clockwise (R). Drive shafts: parallel keyed shaft DIN 6885 (P). Mounting flange: based on ISO 3019-2 (metric) 4-hole (B). Through drive: 100-2 7/8 in 13T 16/32DP A10VSO 28/31 (B3).
- Number
- R902473491
- Type code
- A A4VSO 40 MA /10R-PPB13KB3
- Group
- A4VSO 40
- Edition
- 07/2020

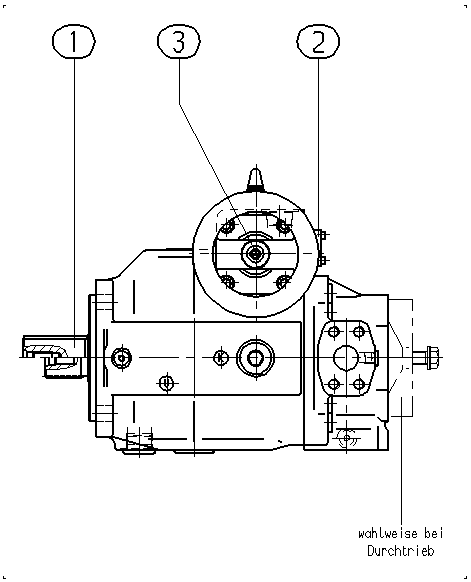

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910984254 | BASE UNIT Assembly parts list →L | 1 | ||
| R910919663 | CONTROL Assembly parts list →L | 1 | ||
| R910919932 | ATTACHMENT KIT | 1 | ||
| 61 | R902805707 | SHIPPING PROTECTION | 1 | |
| 62 | R902602011 | SEAL SCREW | 1 | |
| 63 | R902421948 | SHIPPING PROTECTION | 1 | |
| 71 | R902573673 | FLANGE COVER | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A4VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 40 | 40 |
| Control device Information on controller selection | Manual control | MA |
| Series | Series 1, index 0 | 10 |
| Directions of rotation | Viewed on drive shaft Clockwise | R |
| Drive shafts | Parallel keyed shaft DIN 6885 | P |
| Mounting flange | Based on ISO 3019-2 (metric) 4-hole | B |
| Through drive | 100-2 7/8 in 13T 16/32DP A10VSO 28/31 | B3 |
