Unit · AXIAL-PISTON PUMP

AH A10V O100 DFR1/31R-VSC44K68 -S2714R902473737

Axial piston pump Bosch Rexroth series A10VO, type code AHA10VO100DFR1/31R-VSC44K68-S2714, material number R902473737. Nominal size: NG 100. Version: high-speed version (external dimensions are the same as the standard version) (H). Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged, with flushing function (DFR1). Direction of rotation: viewed on drive shaft Clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Through drive: 101-2 (B) 7/8 in 13T 16/32DP (K68). Special version no. 2714.

Number: R902473737
Type code: AH A10V O100 DFR1/31R-VSC44K68 -S2714
Group: A10VO 100
Edition: 06/2020

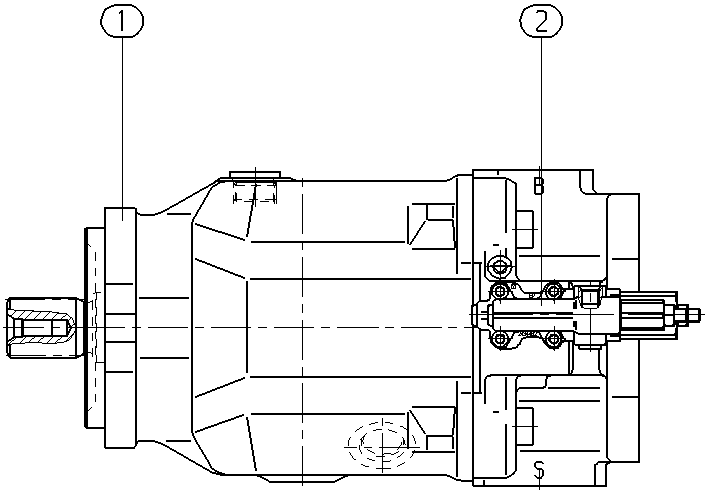

AH A10V O100 DFR1/31R-VSC44K68 -S2714 — Drawing

Pos.	Number	Name	Qty	Add to inquiry
	R902473664	BASE UNIT Assembly parts list →L	1
	R902450439	CONTROL VALVE Assembly parts list →L	1

Parameters from the type code

Item	Meaning	Code
Version	High-speed version (external dimensions are the same as the standard version)	H
Axial piston unit	Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi)	A10V
Operating mode	Pump, open circuit	O
Size (NG)	100	100
Control device	With flow controller X-T plugged, with flushing function	DFR1
Series	Series 3, index 1	31
Direction of rotation	Viewed on drive shaft Clockwise	R
Sealing material	FKM (fluorocarbon rubber)	V
Mounting flange	Based on ISO 3019-1 (SAE) 2-hole	C
Through drive	101-2 (B) 7/8 in 13T 16/32DP	K68

Parameters from the type code

Other versions 7
