Unit · AXIAL-PISTON PUMP

A A10V O 60 DFR1/52R-VSD11N00R902473825

Axial piston pump Bosch Rexroth series A10VO, type code AA10VO60DFR1/52R-VSD11N00, material number R902473825. Nominal size: NG 60. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged with flushing function (DFR1). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 4-hole (D). Working port: SAE flange ports fastening thread metric rear according to ISO 6162 metric not for through drive (11). Through drive: without through drive (N00).

Number
R902473825
Type code
A A10V O 60 DFR1/52R-VSD11N00
Group
A10VO 60
Edition
06/2020

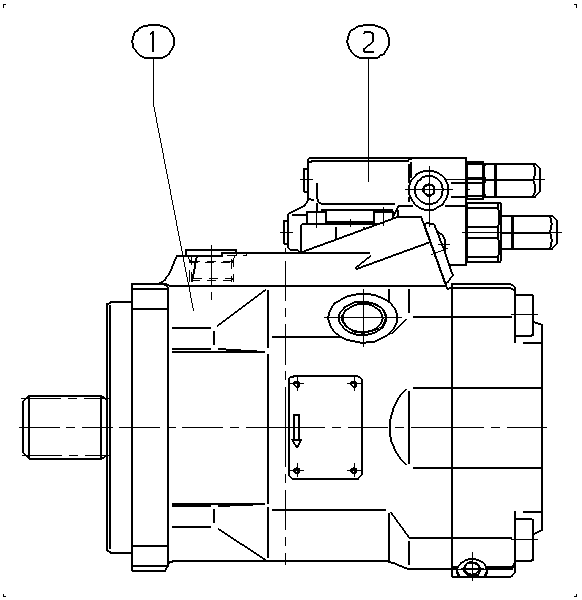

A A10V O 60 DFR1/52R-VSD11N00 — Drawing
Pos.NumberNameQtyAdd to inquiry
R910979581BASE UNIT Assembly parts list →L1
R902450440CONTROL VALVE Assembly parts list →L1

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi)A10V
Operating modePump, open circuitO
Size (NG)6060
Control devicewith flow controller X-T plugged with flushing functionDFR1
SeriesSeries 5, index 252
Direction of rotationViewed on drive shaft clockwiseR
Sealing materialFKM (fluorocarbon rubber)V
Mounting flangeBased on ISO 3019-1 (SAE) 4-holeD
Working portSAE flange ports fastening thread metric rear according to ISO 6162 metric not for through drive11
Through driveWithout through driveN00
