Unit · AXIAL-PISTON PUMP
AL A10V O 45ED 72/52R-VRC12N00P -S2502R902474078
Axial piston pump Bosch Rexroth series A10VO, type code ALA10VO45ED72/52R-VRC12N00P-S2502, material number R902474078. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Control device: electric U = 24 V (ED72). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: similar to shaft "S" however for higher torque (R). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange ports according to ISO 6162 metric fastening thread metric for through drive laterally opposite (12). Through drive: without through drive (N00). Connector for solenoids: DEUTSCH – molded connector, 2-pin – without suppressor diode (for electric controls) (P). Special version no. 2502.
- Number
- R902474078
- Type code
- AL A10V O 45ED 72/52R-VRC12N00P -S2502
- Group
- A10VO 45
- Edition
- 06/2020

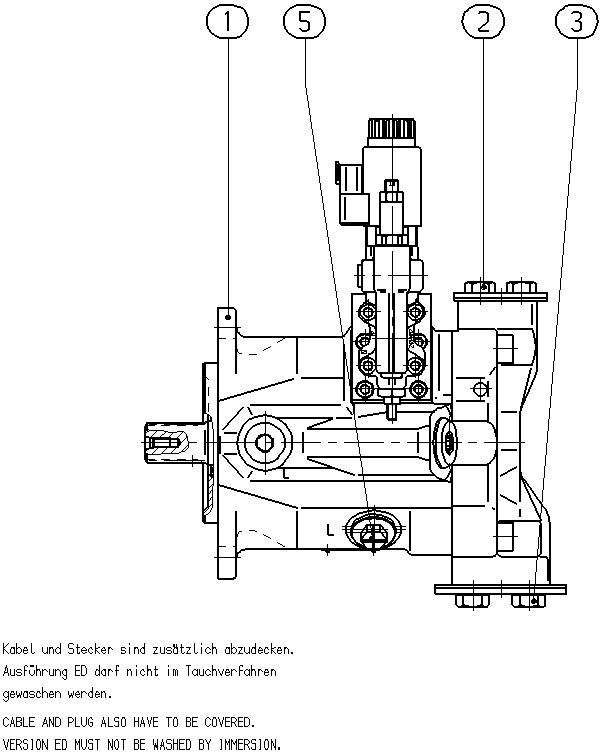

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902474079 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902400578 | FLANGE COVER | 1 | ||
| R902400586 | FLANGE COVER | 1 | ||
| R902603190 | SEAL SCREW | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 45 | 45 |
| Control device | electric U = 24 V | ED72 |
| Series | Series 5, index 2 | 52 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | similar to shaft "S" however for higher torque | R |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange ports according to ISO 6162 metric fastening thread metric for through drive laterally opposite | 12 |
| Through drive | Without through drive | N00 |
| Connector for solenoids | DEUTSCH – molded connector, 2-pin – without suppressor diode (for electric controls) | P |
Other versions 7
- R902501963 A A10V O 45ED 72/52R-VRC12N00P
- R902496730 A A10V O 45ED 72/52R-VRC12N00P -S2062
- R902474079 A A10V O 45ED 72/52R-VRC12N00P -S2502
- R902478106 A A10V O 45ED 72/52R-VRC12N00P -S2858
- R902501962 AL A10V O 45ED 72/52R-VRC12N00P
- R902496729 AL A10V O 45ED 72/52R-VRC12N00P -S2062
- R902478105 AL A10V O 45ED 72/52R-VRC12N00P -S2858
