Unit · AXIAL-PISTON PUMP
AL A10V O 45 DFR1/52R-VSC11N00 -S1008R902474345
Axial piston pump Bosch Rexroth series A10VO, type code ALA10VO45DFR1/52R-VSC11N00-S1008, material number R902474345. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged with flushing function (DFR1). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange ports fastening thread metric rear according to ISO 6162 metric not for through drive (11). Through drive: without through drive (N00). Special version no. 1008.
- Number
- R902474345
- Type code
- AL A10V O 45 DFR1/52R-VSC11N00 -S1008
- Group
- A10VO 45
- Edition
- 07/2020

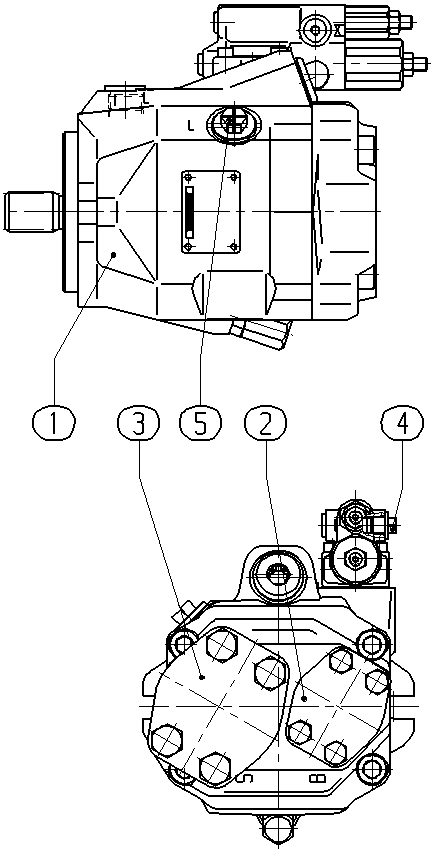

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902443977 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902400578 | FLANGE COVER | 1 | ||
| R902400586 | FLANGE COVER | 1 | ||
| R902602014 | SEAL SCREW | 1 | ||
| R902603190 | SEAL SCREW | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 45 | 45 |
| Control device | with flow controller X-T plugged with flushing function | DFR1 |
| Series | Series 5, index 2 | 52 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange ports fastening thread metric rear according to ISO 6162 metric not for through drive | 11 |
| Through drive | Without through drive | N00 |
Other versions 17
- R902464728 A A10V O 45 DFR1/52R-VSC11N00
- R902542611 A A10V O 45 DFR1/52R-VSC11N00
- R902443977 A A10V O 45 DFR1/52R-VSC11N00 -S1008
- R902486256 A A10V O 45 DFR1/52R-VSC11N00 -S2219
- R902539735 A A10V O 45 DFR1/52R-VSC11N00 -S2359
- R902496425 A A10V O 45 DFR1/52R-VSC11N00 -S3571
- R902468234 A A10V O 45 DFR1/52R-VSC11N00 -S4986
- R902562420 A A10V O 45 DFR1/52R-VSC11N00 -SO116
- R902496221 A A10V O 45 DFR1/52R-VSC11N00 -SO925
- R902410419 AH A10V O 45 DFR1/52R-VSC11N00 -S1194
- R910998358 AL A10V O 45 DFR1/52R-VSC11N00
- R902486255 AL A10V O 45 DFR1/52R-VSC11N00 -S2219
- R992000969 AL A10V O 45 DFR1/52R-VSC11N00 -S2219
- R902496368 AL A10V O 45 DFR1/52R-VSC11N00 -S3571
- R902536807 AL A10V O 45 DFR1/52R-VSC11N00 -S4330
- R902496220 AL A10V O 45 DFR1/52R-VSC11N00 -SO925
- R902401056 AP A10V O 45 DFR1/52R-VSC11N00 -S1194
