Unit · AXIAL-PISTON PUMP

A A10V O 45 DFLR/31R-VSC62K68 -SO793R902474625

Axial piston pump Bosch Rexroth series A10VO, type code AA10VO45DFLR/31R-VSC62K68-SO793, material number R902474625. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: pressure, flow and power controller (DFLR). Direction of rotation: viewed on drive shaft Clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive (62). Through drive: 101-2 (B) 7/8 in 13T 16/32DP (K68). Special version no. 793.

Number
R902474625
Type code
A A10V O 45 DFLR/31R-VSC62K68 -SO793
Group
A10VO 45
Edition
06/2020

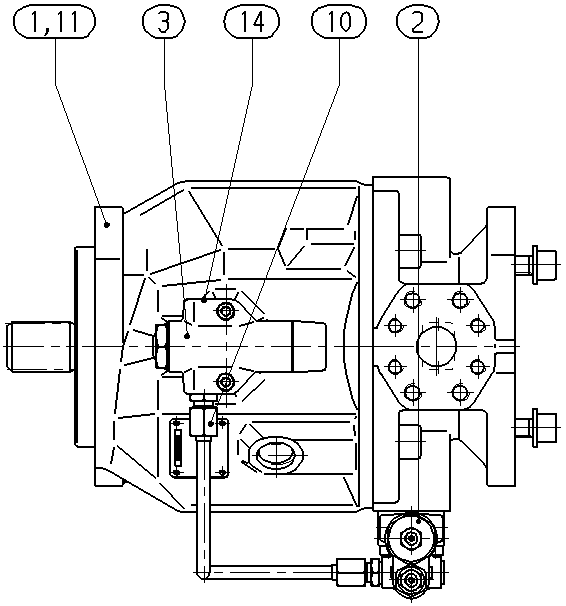

A A10V O 45 DFLR/31R-VSC62K68 -SO793 — Drawing
Pos.NumberNameQtyAdd to inquiry
R902456257BASE UNIT Assembly parts list →L1
R902456590CONTROL VALVE Assembly parts list →L1
R902533217CONTROL VALVE Assembly parts list →L1
R910963862PIPING Assembly parts list →L1
R910994794POWER DIAGRAM1
R910764647SCREW PLUG1

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi)A10V
Operating modePump, open circuitO
Size (NG)4545
Control devicePressure, flow and power controllerDFLR
SeriesSeries 3, index 131
Direction of rotationViewed on drive shaft ClockwiseR
Sealing materialFKM (fluorocarbon rubber)V
Mounting flangeBased on ISO 3019-1 (SAE) 2-holeC
Working portSAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive62
Through drive101-2 (B) 7/8 in 13T 16/32DPK68

Other versions 11
