Unit · AXIAL-PISTON PUMP
A A10VO75DFR1/31R-VSC42K52-S'980395*G&R902474637
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO75DFR1/31R-VSC42K52-S'980395*G&, material number R902474637. Nominal size: NG 75. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged, with flushing function (DFR1). Direction of rotation: viewed on drive shaft Clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom (42). Through drive: 82-2 (A) 3/4 in 11T 16/32DP (K52).
- Number
- R902474637
- Type code
- A A10VO75DFR1/31R-VSC42K52-S'980395*G&
- Group
- A10VO 75
- Edition
- 06/2020

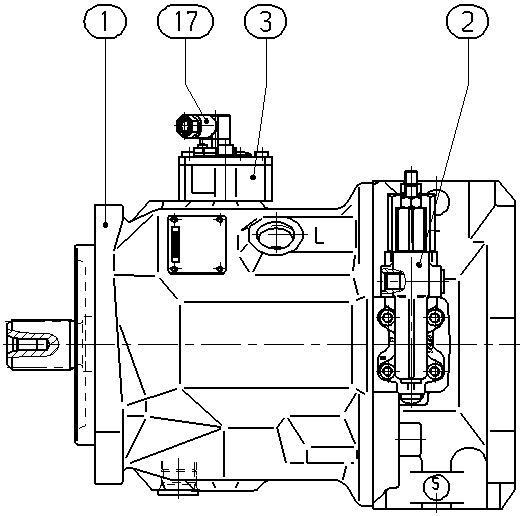

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902474648 | BASE UNIT Assembly parts list →L | 1 | ||
| R902470580 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R900868651 | ASSEMBLY KIT | 1 | ||
| R902650462 | EQUIPMENT SOCKET | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 75 | 75 |
| Control device | With flow controller X-T plugged, with flushing function | DFR1 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft Clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom | 42 |
| Through drive | 82-2 (A) 3/4 in 11T 16/32DP | K52 |
