Unit · AXIAL-PISTON MOTOR
A A10F M 11 /52W-VRC16N000R902474704
Axial piston motor Bosch Rexroth series A10FM, type code AA10FM11/52W-VRC16N000, material number R902474704. Nominal size: NG 11. Axial piston unit: swashplate design, constant, nominal pressure 280 bar (4100 psi), maximum pressure 350 (A10F). Operating mode: motor, open and closed circuit (M). Direction of rotation: viewed on drive shaft Alternating (W). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: splined shaft similar to ISO 3019-1 For high torque (R). Mounting flange: based on ISO 3019-1 (SAE); 2 hole (C). Working port: threaded port A and B laterally, same side, Threaded port, metric according to DIN 3852-1 (16N00). Valves: without valve (0).
- Number
- R902474704
- Type code
- A A10F M 11 /52W-VRC16N000
- Group
- A10FM 11
- Edition
- 06/2020

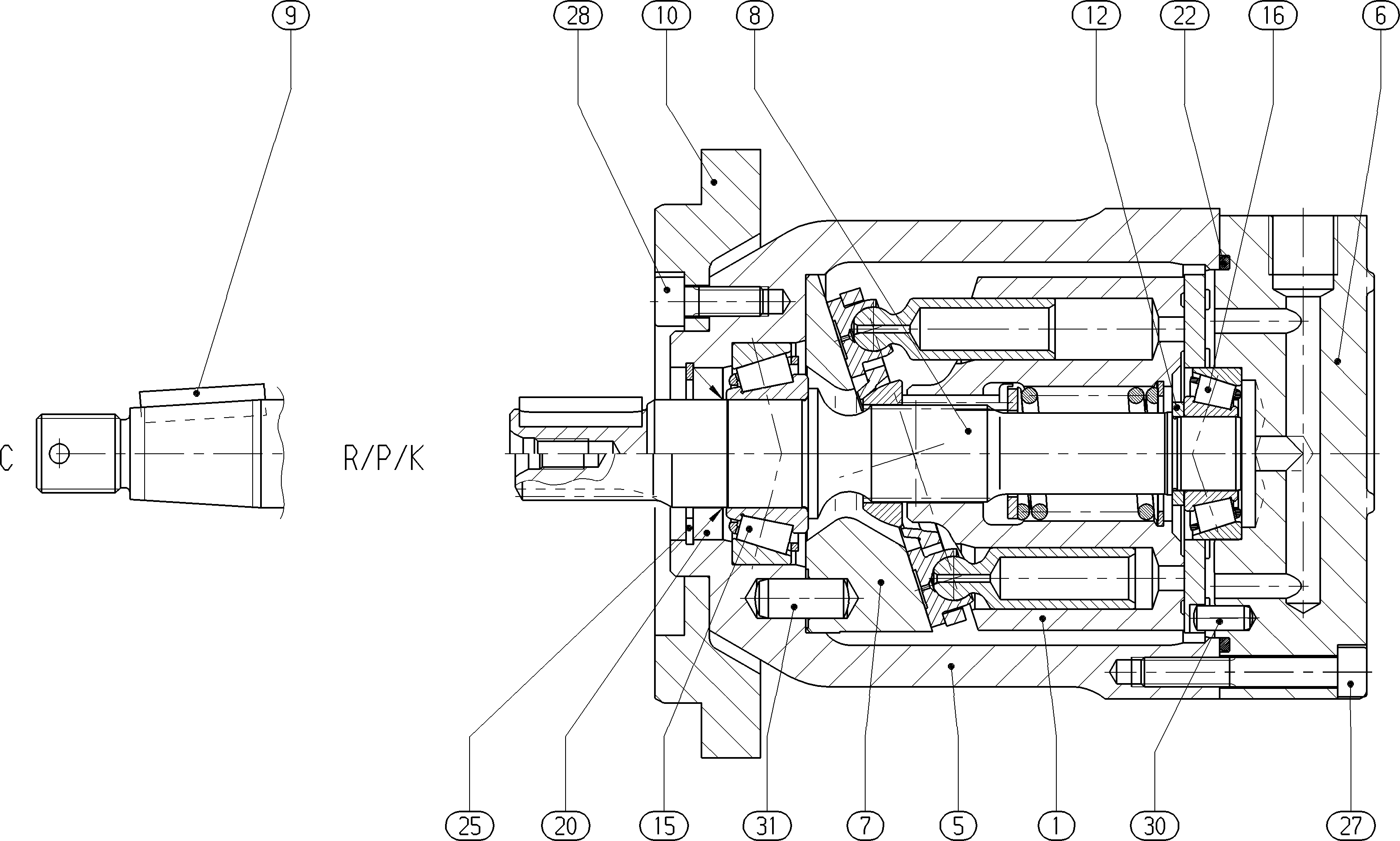

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910993825 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902438435 | MOTOR HOUSING | 1 | ||
| R902430569 | CONNECTION PLATE | 1 | ||
| R902431533 | CAM PLATE | 1 | ||
| R902421812 | DRIVE SHAFT | 1 | ||
| R902419293 | MOUNTING FLANGE | 1 | ||
| R902400729 | ADJUSTMENT SHIM | 1 | ||
| R910704954 | TAPERED-ROLLER BEARING | 1 | ||
| R909086994 | TAPERED-ROLLER BEARING | 1 | ||
| R910900853 | SHAFT SEALING RING | 1 | ||
| R910274135 | O-RING | 1 | ||
| R902403815 | RETAINING RING | 1 | ||
| R910110159 | SOCKET HEAD CAP SCREW | 8 | ||
| R910110221 | SOCKET HEAD CAP SCREW | 8 | ||
| R910911771 | STRAIGHT PIN | 1 | ||
| R910185906 | STRAIGHT PIN | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, constant, nominal pressure 280 bar (4100 psi), maximum pressure 350 | A10F |
| Operating mode | Motor, open and closed circuit | M |
| Size (NG) | 11 | 11 |
| Series | Series 5, index 2 | 52 |
| Direction of rotation | Viewed on drive shaft Alternating | W |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Splined shaft similar to ISO 3019-1 For high torque | R |
| Mounting flange | Based on ISO 3019-1 (SAE); 2 hole | C |
| Working port | Threaded port A and B laterally, same side, Threaded port, metric according to DIN 3852-1 | 16N00 |
| Valves | Without valve | 0 |
