Unit · AXIAL-PISTON PUMP
A A10VSO140 DFR1/31R-VPB12K68 -S1092R902475596
Axial piston pump Bosch Rexroth series A10VSO, type code AA10VSO140DFR1/31R-VPB12K68-S1092, material number R902475596. Nominal size: NG 140. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged, with flushing function (DFR1). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: parallel keyed shaft DIN 6885 permissible through-drive torque (P). Working port: SAE flange ports according to ISO 6162, metric fastening thread laterally opposite (12). Through drive: 101-2 (B) 7/8 in 13T 16/32DP (K68). Special version no. 1092.
- Number
- R902475596
- Type code
- A A10VSO140 DFR1/31R-VPB12K68 -S1092
- Group
- A10VSO 140
- Edition
- 06/2020

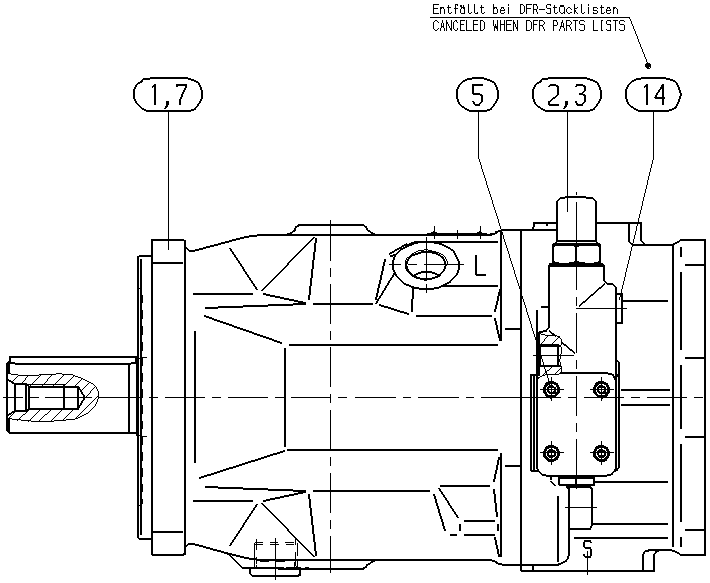

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910973655 | BASE UNIT Assembly parts list →L | 1 | ||
| R902410959 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910924990 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910799998 | SOCKET HEAD CAP SCREW | 4 | ||
| R910917807 | SIDE MARKER RING | 1 | ||
| R909153930 | SCREW PLUG | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 140 | 140 |
| Control device | with flow controller X-T plugged, with flushing function | DFR1 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Parallel keyed shaft DIN 6885 permissible through-drive torque | P |
| Working port | SAE flange ports according to ISO 6162, metric fastening thread laterally opposite | 12 |
| Through drive | 101-2 (B) 7/8 in 13T 16/32DP | K68 |
