Unit · AXIAL-PISTON PUMP

A A10VSO100 DRS /32R-VPB32U99 -S1439R902475896

Axial piston pump Bosch Rexroth series A10VSO, type code AA10VSO100DRS/32R-VPB32U99-S1439, material number R902475896. Nominal size: NG 100. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged (DRS). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: parallel keyed shaft DIN 6885, limited suitability for through drive (P). Mounting flange: ISO 3019-2; 4-hole (B). Port: SAE flange ports fastening thread, metric. top, bottom, opposite, with universal through drive with pulse damping (32). Rotary group version: high-speed with port plate version 22U (S).

Number
R902475896
Type code
A A10VSO100 DRS /32R-VPB32U99 -S1439
Group
A10VSO 100
Edition
06/2020

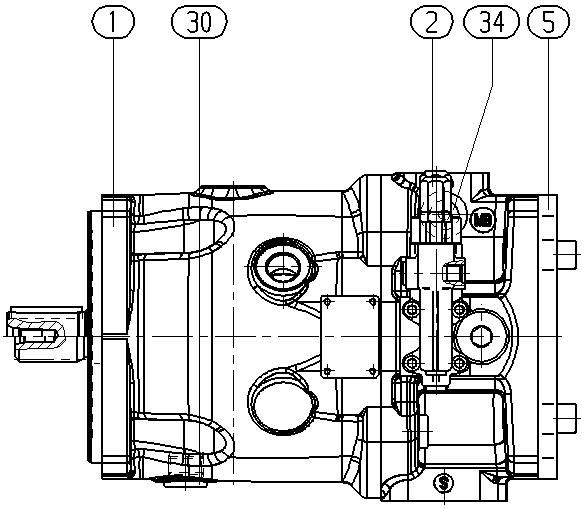

A A10VSO100 DRS /32R-VPB32U99 -S1439 — Drawing
Pos.NumberNameQtyAdd to inquiry
R902456922BASE UNIT Assembly parts list →L1
R902460431CONTROL VALVE Assembly parts list →L1
R902444736COVER Assembly parts list →L1
R909156652SCREW PLUG1
R913011609SCREW PLUG1

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, variable, nominal pressure 280 bar, maximum pressure 350 barA10VS
Operating modePump, open circuitO
Size (NG)100100
Control devicewith flow controller X-T pluggedDRS
SeriesSeries 3, index 232
Direction of rotationViewed on drive shaft clockwiseR
Sealing materialFKM (fluorocarbon rubber)V
Drive shaftParallel keyed shaft DIN 6885, limited suitability for through driveP
Mounting flangeISO 3019-2; 4-holeB
PortSAE flange ports fastening thread, metric. top, bottom, opposite, with universal through drive with pulse damping32
Rotary group versionHigh-speed with port plate version 22US
