Unit · AXIAL-PISTON PUMP
ALAA10VSO 45 DFR /31L-PKC62K68 -SO854R902476016
Axial piston pump Bosch Rexroth series A10VSO, type code ALAA10VSO45DFR/31L-PKC62K68-SO854, material number R902476016. Nominal size: NG 45. Operating mode: pump, open circuit (O). Control device: with flow controller X-T open hydraulic (DFR). Direction of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid (P). Drive shaft: parallel keyed shaft permissible through-drive torque ISO 3019-1 (K). Mounting flange: ISO 3019-1 2-hole (C). Working port: SAE flange ports according to ISO 6162, UNC fastening thread laterally opposite (62). Through drive: 101-2 (B) 7/8 in 13T 16/32DP (K68). Special version no. 854.
- Number
- R902476016
- Type code
- ALAA10VSO 45 DFR /31L-PKC62K68 -SO854
- Group
- A10VSO 45
- Edition
- 06/2020

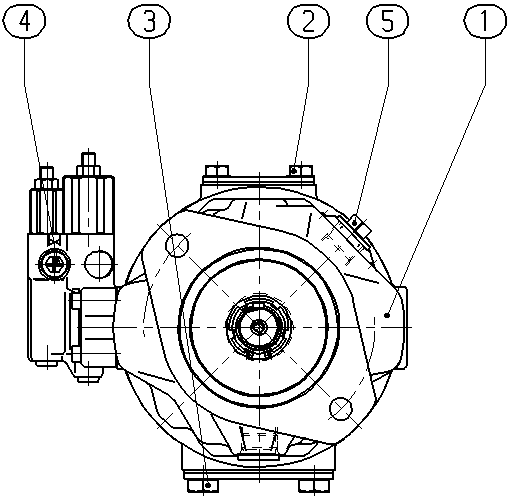

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902472758 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902400579 | FLANGE COVER | 1 | ||
| R902400587 | FLANGE COVER | 1 | ||
| R902602014 | SEAL SCREW | 1 | ||
| R902603190 | SEAL SCREW | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Operating mode | Pump, open circuit | O |
| Size (NG) | 45 | 45 |
| Control device | with flow controller X-T open hydraulic | DFR |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
| Sealing material | NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid | P |
| Drive shaft | Parallel keyed shaft permissible through-drive torque ISO 3019-1 | K |
| Mounting flange | ISO 3019-1 2-hole | C |
| Working port | SAE flange ports according to ISO 6162, UNC fastening thread laterally opposite | 62 |
| Through drive | 101-2 (B) 7/8 in 13T 16/32DP | K68 |
