Unit · AXIAL-PISTON PUMP
A A10VSO 10 DR /52R-VKC64N00 -S2791R902476348
Axial piston pump Bosch Rexroth series A10VSO, type code AA10VSO10DR/52R-VKC64N00-S2791, material number R902476348. Nominal size: NG 10. Operating mode: pump, open circuit (O). Control device: pressure controller hydraulic (DR). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: parallel keyed shaft permissible through-drive torque ISO 3019-1 (K). Mounting flange: ISO 3019-1 2-hole (C). Through drive: without through drive (N00). Special version no. 2791.
- Number
- R902476348
- Type code
- A A10VSO 10 DR /52R-VKC64N00 -S2791
- Group
- A10VSO 10
- Edition
- 06/2020

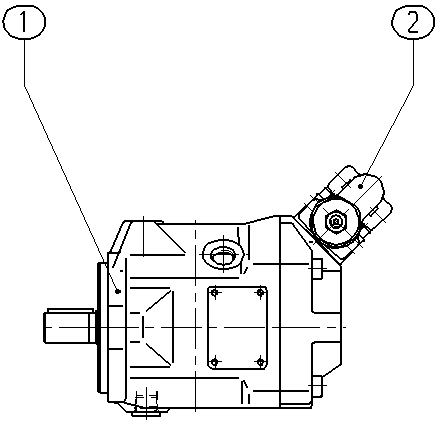

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902459970 | BASE UNIT Assembly parts list →L | 1 | ||
| R902476081 | CONTROL VALVE Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Operating mode | Pump, open circuit | O |
| Size (NG) | 10 | 10 |
| Control device | Pressure controller hydraulic | DR |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Parallel keyed shaft permissible through-drive torque ISO 3019-1 | K |
| Mounting flange | ISO 3019-1 2-hole | C |
| Through drive | Without through drive | N00 |
Other versions 9
- R902433002 A A10VSO 10 DR /52R-VKC64N00 -S1768
- R902531635 A A10VSO 10 DR /52R-VKC64N00 -SO275
- R902554526 A A10VSO 10 DR /52R-VKC64N00 -SO857
- R902555473 A A10VSO 10 DR /52R-VKC64N00 -SO857
- R902540400 A A10VSO 10 DR /52R-VKC64N00 -SO858
- R902469635 A A10VSO 10 DR /52R-VKC64N00 ESO858
- R902477531 A A10VSO 10 DR /52R-VKC64N00 ESO858
- R902501164 A A10VSO 10 DR /52R-VKC64N00 ESO938
- R902406670 AA10VSO10DR/52R-VKC64N00ES1768
