Unit · AXIAL-PISTON PUMP

A A10V O 85 DFR1/52R-VUC12G10R902476486

Axial piston pump Bosch Rexroth series A10VO, type code AA10VO85DFR1/52R-VUC12G10, material number R902476486. Nominal size: NG 85. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged with flushing function (DFR1). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: reduced diameter, limited suitability for through drive (U). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange ports according to ISO 6162 metric fastening thread metric for through drive laterally opposite (12).

Number: R902476486
Type code: A A10V O 85 DFR1/52R-VUC12G10
Group: A10VO 85
Edition: 06/2020

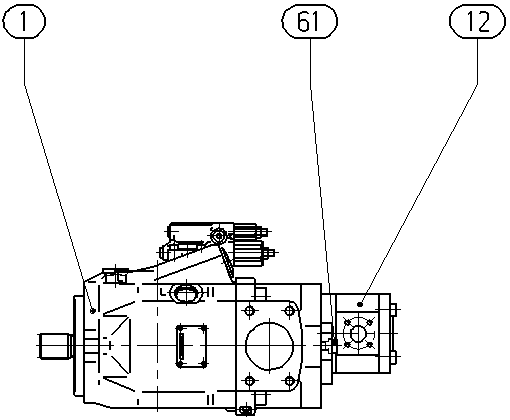

Pos.	Number	Name	Qty
	R902475682	AXIAL-PISTON PUMP Assembly parts list →L	1
	0510225020	HYDRAULIC GEAR PUMPL	1
	R910109606	SOCKET HEAD CAP SCREW	2
70	R902421947	SHIPPING PROTECTION	1
71	R902421950	SHIPPING PROTECTION	1
72	R902603191	SEAL SCREW	1
73	R902602014	SEAL SCREW	1
75	R909830326	NAMEPLATE	1
75	R902448945	FLANGE COVER	1
76	R902448945	FLANGE COVER	1

Parameters from the type code

Item	Meaning	Code
Axial piston unit	Swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi)	A10V
Operating mode	Pump, open circuit	O
Size (NG)	85	85
Control device	with flow controller X-T plugged with flushing function	DFR1
Series	Series 5, index 2	52
Direction of rotation	Viewed on drive shaft clockwise	R
Sealing material	FKM (fluorocarbon rubber)	V
Drive shaft	reduced diameter, limited suitability for through drive	U
Mounting flange	Based on ISO 3019-1 (SAE) 2-hole	C
Working port	SAE flange ports according to ISO 6162 metric fastening thread metric for through drive laterally opposite	12

Other versions 1

R902478353 AL A10V O 85 DFR1/52R-VUC12G10
